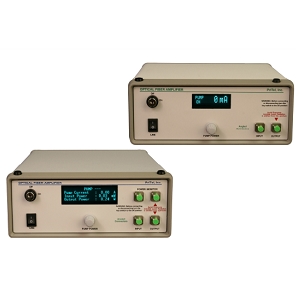

LNHP-PMFA-23-NMA

Optical Amplifier by PriTel, Inc.
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to PriTel, Inc..

The LNHP-PMFA-23-NMA from PriTel, Inc. is a Optical Amplifier with Input Power -30 to 10 dBm, Noise Figure <2.5 dB, Saturated Output Power 23 dBm, Saturated Output Power 23 dBm, Input Power -30 to 10 dBm. More details for LNHP-PMFA-23-NMA can be seen below.

Product Specifications

Product Details

  • Part Number
    LNHP-PMFA-23-NMA
  • Manufacturer
    PriTel, Inc.
  • Description
    Low noise, high powerpolarization maintaining optical fiber amplifiers

General Parameters

  • Amplifier Type
    Pre-Amplifier, Erbium-Doped Fiber Amplifier (EDFA)
  • Connectors
    FC/APC
  • Gain Flatness :
    0.5 dB
  • Output Type
    CW
  • Package Type
    Benchtop / Rackmount
  • Channels
    Single
  • Input Power
    -30 to 10 dBm
  • Noise Figure :
    <2.5 dB
  • Saturated Output Power
    23 dBm
  • Saturated Output Power
    23 dBm
  • Gain Material
    Erbium-Doped
  • Package
    Benchtop
  • Power Consumption
    <50 W
  • Pump Wavelength
    910 to 980 nm
  • Small Signal Gain
    25 to 45 dB
  • Input Power
    -30 to 10 dBm
  • Supply Voltage (AC)
    85 to 264 VAC at 47 to 63 Hz
  • Wavelength Range
    1528 to 1565 nm

Applications

  • Application
    R&D applications in 1550 nm telecommunications, fiber lasers and optical switching

Environmental Conditions

  • Operating Temperature
    15 to 30 Degree C
  • Storage Temperature
    -20 to 50 Degree C

Fiber Parameters

  • Fiber Coupled
    Yes

Physical Properties

  • Dimension
    10 x 26 x 36 cm

Technical Documents
Click to view more product details on manufacturer's website
