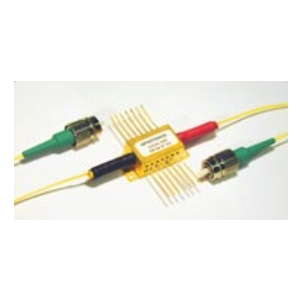

QSOA-1550

Optical Amplifier by QPhotonics
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to QPhotonics.

The QSOA-1550 from QPhotonics is a Optical Amplifier with Noise Figure 6 dB, Saturated Output Power 1 dBm, Saturated Output Power 1 dBm, Gain 15 to 25 dB (fiber), Output Power 5 mW. More details for QSOA-1550 can be seen below.

Product Specifications

Product Details

  • Part Number
    QSOA-1550
  • Manufacturer
    QPhotonics
  • Description
    1510 to 1560 nm Butterfly CW, Pulsed Semiconductor Optical Amplifier

General Parameters

  • Amplifier Type
    Semiconductor Optical Amplifier (SOA)
  • Connectors
    FC/APC
  • Output Type
    CW, Pulsed
  • Center Wavelength
    1510 to 1560 nm
  • Package Type
    Butterfly
  • Polarization Dependent Gain
    3 dB
  • Noise Figure :
    6 dB
  • Saturated Output Power
    1 dBm
  • Forward Voltage
    1.6 to 2 V
  • Saturated Output Power
    1 dBm
  • Package
    14-pin butterfly package
  • Polarization Dependancy
    Yes
  • Thermistor Resistance
    10 kOhms
  • Gain
    15 to 25 dB (fiber)
  • Output Power
    5 mW
  • Operating Current
    301 to 331 mA
  • Output Power :
    5 mW
  • Supply Voltage (DC)
    1.14 V(Operating)
  • Wavelength Range
    1528.6 nm
  • Note
    Spectral Width: 32.33 nm

Environmental Conditions

  • Operating Temperature
    -40 to 60 Degree C

Fiber Parameters

  • Fiber Mode
    Single Mode
