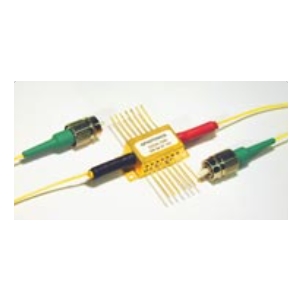

QSOA-840

Optical Amplifier by QPhotonics
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to QPhotonics.


Product Specifications

Product Details

  • Part Number
    QSOA-840
  • Manufacturer
    QPhotonics
  • Description
    830 to 850 nm Butterfly CW, Pulsed Semiconductor Optical Amplifier

General Parameters

  • Amplifier Type
    Semiconductor Optical Amplifier (SOA)
  • Connectors
    FC/APC
  • Output Type
    CW, Pulsed
  • Center Wavelength
    830 to 850 nm
  • Package Type
    Butterfly
  • Polarization Dependent Gain
    3 dB
  • Noise Figure :
    6 dB
  • Saturated Output Power
    10 dBm
  • Forward Voltage
    1.7 to 2.4 V
  • Saturated Output Power
    10 dBm
  • Package
    14-pin butterfly package
  • Polarization Dependancy
    Yes
  • Thermistor Resistance
    10 kOhms
  • Gain
    15 to 20 dB (fiber)
  • Output Power
    17.2 mW
  • Operating Current
    252 to 277 mA
  • Output Power :
    17.2 mW
  • Supply Voltage (DC)
    2.12 V(Operating)
  • Wavelength Range
    842.5 nm
  • Note
    Spectral Width: 13.8 nm

Environmental Conditions

  • Operating Temperature
    -40 to 60 Degree C

Fiber Parameters

  • Fiber Mode
    Single Mode
