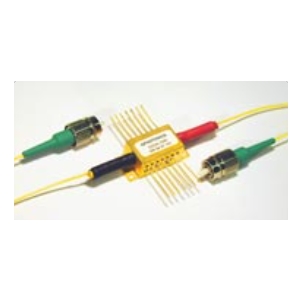

QSOAI-1030

Optical Amplifier by QPhotonics
Request Quote

Note: Your Quotation Request will be directed to QPhotonics.

The QSOAI-1030 from QPhotonics is a Optical Amplifier with Input Power 20 dBm, Noise Figure 8 dB, Saturated Output Power 12 to 18 dBm, Saturated Output Power 12 to 18 dBm, Gain 35 to 40 dB. More details for QSOAI-1030 can be seen below.

Product Specifications

Product Details

  • Part Number
    QSOAI-1030
  • Manufacturer
    QPhotonics
  • Description
    1020 to 1040 nm Butterfly CW, Pulsed Semiconductor Optical Amplifier

General Parameters

  • 3dB Wavelength Bandwidth
    15 to 20 nm
  • Amplifier Type
    Semiconductor Optical Amplifier (SOA)
  • ASE Bandwidth
    15 to 20 nm
  • Connectors
    FC/APC
  • ASE Wavelength
    1020 to 1040 nm
  • Output Type
    CW, Pulsed
  • Center Wavelength
    1020 to 1040 nm
  • Package Type
    Butterfly
  • Polarization
    Linear
  • Polarization Extinction Ratio :
    15 to 20 dB
  • Input Power
    20 dBm
  • Noise Figure :
    8 dB
  • Saturated Output Power
    12 to 18 dBm
  • Forward Voltage
    1.5 to 1.8 V
  • Saturated Output Power
    12 to 18 dBm
  • Package
    14-pin butterfly package
  • Polarization Dependancy
    Yes
  • Thermistor Resistance
    10 kOhms
  • Gain
    35 to 40 dB
  • Input Power
    20 dBm
  • Operating Current
    400 to 500 mA

Environmental Conditions

  • Operating Temperature
    0 to 70 Degree C
  • Storage Temperature
    -40 to 85 Degree C

Fiber Parameters

  • Fiber Mode
    Single Mode
