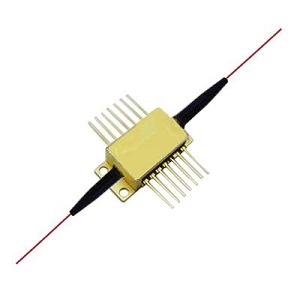

PMSOA-1650-OO-J-LL-CC

Optical Amplifier by Seagnol Photonics
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Seagnol Photonics.

The PMSOA-1650-OO-J-LL-CC from Seagnol Photonics is a Optical Amplifier with Noise Figure 7.5 to 9 dB, Saturated Output Power 10 to 12 dBm, Saturated Output Power 10 to 12 dBm, Operating Current 250 to 400 mA, Wavelength Range 1610 to 1650 nm. More details for PMSOA-1650-OO-J-LL-CC can be seen below.

Product Specifications

Product Details

  • Part Number
    PMSOA-1650-OO-J-LL-CC
  • Manufacturer
    Seagnol Photonics
  • Description
    1650nm PM Semiconductor Optical Amplifier

General Parameters

  • 3dB Wavelength Bandwidth
    40 nm
  • Amplifier Type
    Semiconductor Optical Amplifier (SOA), Optical Line Amplifier
  • Connectors
    FC/APC, FC/UPC, LC/APC, LC/UPC, SC/APC, SC/UPC
  • Output Type
    CW
  • Center Wavelength
    1610 to 1650 nm
  • Package Type
    Butterfly
  • Polarization
    Random
  • Polarization Dependent Gain
    2 dB
  • Polarization Extinction Ratio :
    22 dB
  • Noise Figure :
    7.5 to 9 dB
  • Saturated Output Power
    10 to 12 dBm
  • Forward Voltage
    1.8 V
  • Saturated Output Power
    10 to 12 dBm
  • Package
    14-Pin Butterfly
  • Polarization Dependancy
    Yes
  • Small Signal Gain
    15 to 25 dB
  • Thermistor Resistance
    9.5 to 10.5 kOhms
  • Operating Current
    250 to 400 mA
  • Wavelength Range
    1610 to 1650 nm

Applications

  • Application
    Optical Line Amplifier, Optic Non-linear Application, Optoelectronic Integration, WDM System

Environmental Conditions

  • Operating Temperature
    -10 to 70 Degree C
  • Storage Temperature
    -40 to 85 Degree C

Fiber Parameters

  • Fiber Coupled
    Yes
  • Fiber Mode
    Polarization Maintaining
  • Fiber Length
    0.2 to 2 m
