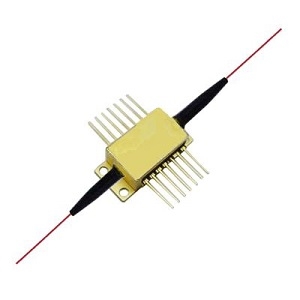

SSOA-1550-I-FF-J-LL-CC

Optical Amplifier by Seagnol Photonics
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Seagnol Photonics.

The SSOA-1550-I-FF-J-LL-CC from Seagnol Photonics is a Optical Amplifier with Noise Figure 8 to 9 dB, Saturated Output Power 8 dBm, Saturated Output Power 8 dBm, Operating Current 350 to 500 mA, Wavelength Range 1490 to 1590 nm. More details for SSOA-1550-I-FF-J-LL-CC can be seen below.

Product Specifications

Product Details

  • Part Number
    SSOA-1550-I-FF-J-LL-CC
  • Manufacturer
    Seagnol Photonics
  • Description
    1550nm Semiconductor Optical Amplifier (Switch Type)

General Parameters

  • 3dB Wavelength Bandwidth
    45 nm
  • Amplifier Type
    Semiconductor Optical Amplifier (SOA)
  • Connectors
    FC/APC, FC/UPC, LC/APC, LC/UPC, SC/APC, SC/UPC
  • Output Type
    CW
  • Center Wavelength
    1490 to 1590 nm
  • Package Type
    Butterfly
  • Polarization
    Random
  • Polarization Dependent Gain
    0.5 to 1 dB
  • Polarization Extinction Ratio :
    40 to 60 dB
  • Noise Figure :
    8 to 9 dB
  • Saturated Output Power
    8 dBm
  • Forward Voltage
    2.5 V
  • Saturated Output Power
    8 dBm
  • Package
    14-Pin Butterfly
  • Polarization Dependancy
    Yes
  • Small Signal Gain
    13 dB
  • Thermistor Resistance
    9.5 to 10.5 kOhms
  • Operating Current
    350 to 500 mA
  • Wavelength Range
    1490 to 1590 nm
  • Note
    Switching Properties (Fall/Rise time): 1 to 2 ns

Applications

  • Application
    Optical Switch, Optic Non-linear Application, Optoelectronic Integration, Fiber Grating

Environmental Conditions

  • Operating Temperature
    -20 to 70 Degree C
  • Storage Temperature
    -40 to 85 Degree C

Fiber Parameters

  • Fiber Coupled
    Yes
  • Fiber Mode
    Single Mode, Polarization Maintaining
  • Fiber Length
    0.5 to 2 m
