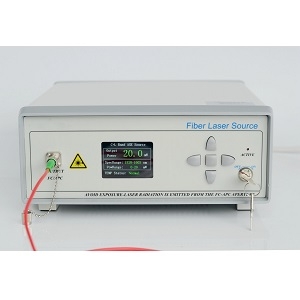

SL-EDFA-C-LA-xx dB

Optical Amplifier by Shanghai Sail Laser Technology
Request Quote

Note: Your Quotation Request will be directed to Shanghai Sail Laser Technology.

The SL-EDFA-C-LA-xx dB from Shanghai Sail Laser Technology is a Optical Amplifier with Input Power -25 to -3 dBm, Noise Figure 5.5 dB, Saturated Output Power 13/17/23/25/26 dBm, Saturated Output Power 13/17/23/25/26 dBm, Input Power -25 to -3 dBm. More details for SL-EDFA-C-LA-xx dB can be seen below.

Product Specifications

Product Details

  • Part Number
    SL-EDFA-C-LA-xx dB
  • Manufacturer
    Shanghai Sail Laser Technology
  • Description
    Single Channel Erbium-doped Fiber In-Line Amplifier for C-band

General Parameters

  • Amplifier Type
    Erbium-Doped Fiber Amplifier (EDFA), In-Line Amplifier
  • Connectors
    FC/APC, DB9 Female
  • Bands
    C Band
  • Gain Flatness :
    3 dB
  • Output Type
    CW
  • Package Type
    Benchtop / Rackmount, Module with Connector
  • Channels
    Single
  • Polarization Dependent Gain
    <0.5 dB
  • Control Mode
    Automatic Current Control (ACC)
  • Input Power
    -25 to -3 dBm
  • Noise Figure :
    5.5 dB
  • Saturated Output Power
    13/17/23/25/26 dBm
  • Saturated Output Power
    13/17/23/25/26 dBm
  • Gain Material
    Erbium-Doped
  • Interface
    Button or RS232
  • Package
    Benchtop / Module with connector
  • Polarization Dependancy
    Yes
  • Polarization Mode Dispersion(PMD)
    0.5 ps
  • Small Signal Gain
    35 dB
  • Warranty
    1 Year
  • Input Power
    -25 to -3 dBm
  • Isolation
    >35 dB
  • Supply Voltage (AC)
    100 to 240 VAC
  • Supply Voltage (DC)
    5 VDC
  • Wavelength Range
    1530 to 1565 nm

Applications

  • Application
    Fiber communication, Fiber sensing, Fiber Laser

Environmental Conditions

  • Operating Temperature
    - 5 to 55 Degree C

Fiber Parameters

  • Fiber Coupled
    Yes
  • Fiber Mode
    Single Mode
  • Fiber Type
    SMF-28e

Physical Properties

  • Dimension
    Desk: 260 x 280 x 120 mm ( W x D x H ), Module: 125 x 150 x 20 mm ( W x D x H )
