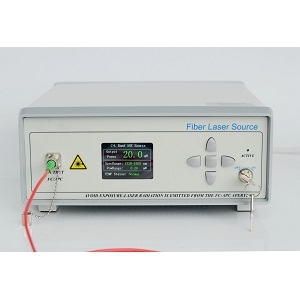

SL-FRA-1650-xxxx mW

Optical Amplifier by Shanghai Sail Laser Technology
Request Quote

Note: Your Quotation Request will be directed to Shanghai Sail Laser Technology.

The SL-FRA-1650-xxxx mW from Shanghai Sail Laser Technology is a Optical Amplifier with Gain 10 to 20 dB(Raman), Isolation >35 dB, Supply Voltage (AC) 100 to 240 VAC, Supply Voltage (DC) 5 VDC, Wavelength Range 1570 to 1650 nm. More details for SL-FRA-1650-xxxx mW can be seen below.

Product Specifications

Product Details

  • Part Number
    SL-FRA-1650-xxxx mW
  • Manufacturer
    Shanghai Sail Laser Technology
  • Description
    Distributed Fiber Raman Amplifier

General Parameters

  • Amplifier Type
    Raman Amplifier
  • Connectors
    FC/APC, DB9 Female
  • Gain Flatness :
    <2 dB
  • Output Type
    CW
  • Package Type
    Benchtop / Rackmount, Module with Connector
  • Polarization Dependent Gain
    <0.2 dB
  • Control Mode
    Automatic Power Control (APC)
  • Interface
    Button or RS232
  • Package
    Benchtop / Module with connector
  • Polarization Dependancy
    Yes
  • Polarization Mode Dispersion(PMD)
    <0.5 ps
  • Pump Polarization Ratio
    5 to 10%
  • Pump Power
    300/500/1000/1400 mW
  • Pump Wavelength
    1470 to 1550 nm
  • Warranty
    1 Year
  • Gain
    10 to 20 dB(Raman)
  • Isolation
    >35 dB
  • Supply Voltage (AC)
    100 to 240 VAC
  • Supply Voltage (DC)
    5 VDC
  • Wavelength Range
    1570 to 1650 nm

Applications

  • Application
    Fiber communication, Fiber sensing, Fiber Laser

Environmental Conditions

  • Operating Temperature
    - 5 to 55 Degree C

Fiber Parameters

  • Fiber Coupled
    Yes
  • Fiber Mode
    Single Mode
  • Fiber Type
    SMF-28e

Physical Properties

  • Dimension
    Desk: 260 x 280 x 120 mm ( W x D x H ), Module: 125 x 150 x 20 mm ( W x D x H )
Click to view more product details on manufacturer's website
