OFA731

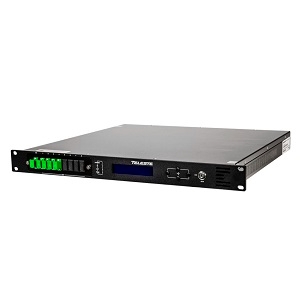

Optical Amplifier by Teleste
Request Quote

Note: Your Quotation Request will be directed to Teleste.

The OFA731 from Teleste is a Optical Amplifier with Input Power -5 to 10 dBm, Noise Figure 6 dB, Saturated Output Power 17 to 20 dBm, Saturated Output Power 17 to 20 dBm, Input Power -5 to 10 dBm. More details for OFA731 can be seen below.

Product Specifications

Product Details

  • Part Number
    OFA731
  • Manufacturer
    Teleste
  • Description
    1545 to 1565 nm Optical Amplifier for Fibre Optic CATV and FTTx Networks

General Parameters

  • Connectors
    SC/APC
  • Output Type
    CW
  • Package Type
    Benchtop / Rackmount
  • Input Power
    -5 to 10 dBm
  • Noise Figure :
    6 dB
  • Saturated Output Power
    17 to 20 dBm
  • Saturated Output Power
    17 to 20 dBm
  • Output Ports
    1, 2 or 4 Ports
  • Package
    Benchtop / Rackmount
  • Power Consumption
    <25 W
  • Input Power
    -5 to 10 dBm
  • Supply Voltage (AC)
    230 VAC
  • Supply Voltage (DC)
    48 V
  • Wavelength Range
    1545 to 1565 nm

Applications

  • Application
    Fibre Optic CATV and FTTx Networks

Environmental Conditions

  • Operating Temperature
    -10 to 65 Degree C
  • Storage Temperature
    -30 to 70 Degree C

Fiber Parameters

  • Fiber Coupled
    Yes

Physical Properties

  • Dimension
    1U x 19"
  • Weight
    6.2 kg
