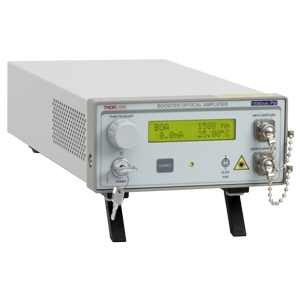

S9FC1080P

Optical Amplifier by Thorlabs Inc
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Thorlabs Inc.

The S9FC1080P from Thorlabs Inc is a Optical Amplifier with Noise Figure 7 to 9 dB, Saturated Output Power 12 to 15 dBm, Saturated Output Power 12 to 15 dBm, Gain 20 to 25 dB, Supply Voltage (AC) 100 to 240 VAC, 50 to 60 Hz. More details for S9FC1080P can be seen below.

Product Specifications

Product Details

  • Part Number
    S9FC1080P
  • Manufacturer
    Thorlabs Inc
  • Description
    1570 to 1610 nm Benchtop CW Booster Optical Amplifier

General Parameters

  • 3dB Wavelength Bandwidth
    12 to 15 nm
  • Amplifier Type
    Booster Optical Amplifier (BOA)
  • Connectors
    FC/APC
  • Output Type
    CW
  • Center Wavelength
    1570 to 1610 nm
  • Package Type
    Benchtop / Rackmount
  • Noise Figure :
    7 to 9 dB
  • Saturated Output Power
    12 to 15 dBm
  • Saturated Output Power
    12 to 15 dBm
  • Interface
    USB
  • Package
    Benchtop
  • Gain
    20 to 25 dB
  • Supply Voltage (AC)
    100 to 240 VAC, 50 to 60 Hz
  • Supply Voltage (DC)
    0 to 5 V

Fiber Parameters

  • Fiber Mode
    Polarization Maintaining

Physical Properties

  • Dimension
    147 x 290 x 66 mm (L x W x H)
