The EYP-TPA-0780-03000-4006-BTU02-0000 from TOPTICA EAGLEYARD is a Tapered Semiconductor Optical Amplifier (SOA) that operates at a wavelength of 780 nm. It delivers an output power above 3 W and has a gain width (FWHM) of 20 nm. This continuous wave SOA has an amplification of 23 dB and a temperature coefficient of wavelength of 0.3 nm/K. It has an output beam divergence of 3 deg (parallel & perpendicular) and produces a beam of diameter 1 mm.

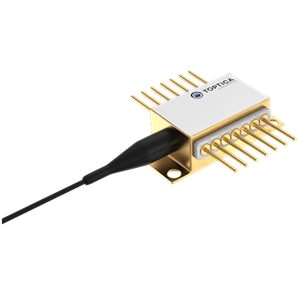

The EYP-TPA-0780-03000-4006-BTU02-0000 has a Transverse Magnetic (TM) polarization & collimated output beam and supports PM fiber & FC/APC connector. It has a thermoelectric cooler and thermistor with a thermistor resistance of 10 kOhms. This SOA has a forward current of up to 4.5 A and dissipates 10 mW - 50 mW of power. It is available in a 14-pin butterfly package that measures 30 mm x 15.1 mm x 8.9 mm and is ideal for spectroscopy applications.
