1550-1-B-30-PM-M

Fiber Optic Attenuator by CivilLaser
Request Quote

Note: Your Quotation Request will be directed to CivilLaser.

The 1550-1-B-30-PM-M from CivilLaser is a Fiber Optic Attenuator with Wavelength Dependent Loss <1 dB, Attenuation 0 to 30 dB, Insertion Loss <1.5 dB, Polarization Dependent Loss 0.5 dB, Operating Wavelength 1550 nm. More details for 1550-1-B-30-PM-M can be seen below.

Product Specifications

Product Details

  • Part Number
    1550-1-B-30-PM-M
  • Manufacturer
    CivilLaser
  • Description

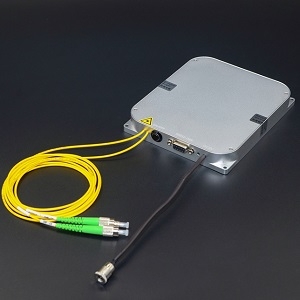

    1550nm 0-30dB Attenuation PM Fiber Attenuator Module

General Parameters

  • Wavelength Dependent Loss
    <1 dB

Applications

  • Application
    Optical fiber sensing, Optical fiber communication, Optical fiber device test

Fiber Parameters

  • Fiber Mode
    Polarization Maintaining
  • Fiber Type
    PM1550 PM fiber

Environmental Conditions

  • Relative Humidity
    0 to 70%
  • Operating Temperature
    -5 to 35 Degree C

Electrical Specifications

  • Current
    3 A
  • Attenuation Accuracy
    ±0.15 dB
  • Attenuation Adjustment Step Size
    <0.1 dB
  • Attenuator Type
    Variable Optical Attenuator
  • Dimensions
    260 x 280 x 120 mm (W x D x H), 125 x 150 x 20 mm (W x D x H)
  • DC Voltage
    5 VDC
  • Attenuation
    0 to 30 dB
  • Insertion Loss
    <1.5 dB
  • Power Supply
    100 to 240 VAC
  • RF Connector
    DB9 Female

Optical Specifications

  • Polarization Dependent Loss
    0.5 dB
  • Operating Wavelength
    1550 nm
  • Optical Input Power
    <100 mW

Connections & Interface

  • Interface
    Button, RS232 Serial communication
  • Optical Connector
    FC/APC
