DA-100-3S-1300/1550-9/125-S-40

Fiber Optic Attenuator by OZ Optics Ltd.
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to OZ Optics Ltd..

The DA-100-3S-1300/1550-9/125-S-40 from OZ Optics Ltd. is a Fiber Optic Attenuator with Wavelength Dependent Loss Up to 0.3 dB (Attenuation), Attenuation 1 to 60 dB, Attenuation Resolution 0.01 dB, Insertion Loss 1 to 2 dB, Return Loss 40 dB. More details for DA-100-3S-1300/1550-9/125-S-40 can be seen below.

Product Specifications

Product Details

  • Part Number
    DA-100-3S-1300/1550-9/125-S-40
  • Manufacturer
    OZ Optics Ltd.
  • Description

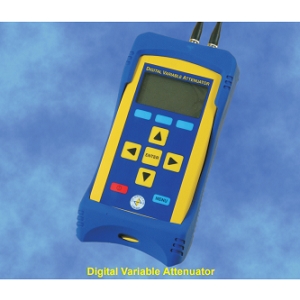

    Digital variable attenuator with 9/125 micron singlemode fiber with FC/Super PC receptacles, 40 dB return loss and calibrated at 1300/1550 nm

General Parameters

  • Wavelength Dependent Loss
    Up to 0.3 dB (Attenuation)

Applications

  • Application
    Bit error rate testing, Trouble shooting receivers and other active fiber optic components, Simulating long distance fiber transmission, Design of fiber optic transmitter/receiver circuitry, Power meter linearity checks, Power setting

Fiber Parameters

  • Fiber diameter
    9/125 µm
  • Fiber Mode
    Single Mode

Environmental Conditions

  • Operating Temperature
    -10 to 55 Degree C
  • Storage Temperature
    -30 to 70 Degree C

Electrical Specifications

  • Attenuation Accuracy
    ±0.3 dB, ±0.5 dB, ±1 dB
  • Attenuator Type
    Variable Optical Attenuator
  • Battery Life
    up to 8 hours continuous use
  • Dimensions
    150 x 81 x 46 mm
  • DC Voltage
    12 VDC
  • Attenuation
    1 to 60 dB
  • Attenuation Resolution
    0.01 dB
  • Insertion Loss
    1 to 2 dB
  • Return Loss
    40 dB
  • Power Supply
    Universal 110 to 220 VAC
  • Repeatability
    ±0.03 dB, ±0.10 dB
  • Sub-Category
    Digital Optical Attenuator

Optical Specifications

  • Polarization Dependent Loss
    Up to 0.05 dB
  • Operating Wavelength
    1300 nm, 1550 nm
  • Optical Input Power
    Up to 2 W

Connections & Interface

  • Interface
    USB
  • Optical Connector
    FC/SPC
