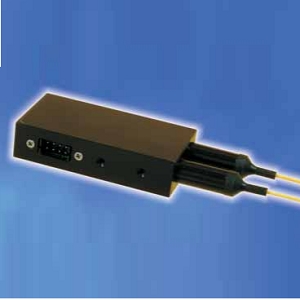

DD-100-11-1300/1550-9/125-S-50-3U3U-1-1-485:1-6-PC

Fiber Optic Attenuator by OZ Optics Ltd.
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to OZ Optics Ltd..

The DD-100-11-1300/1550-9/125-S-50-3U3U-1-1-485:1-6-PC from OZ Optics Ltd. is a Fiber Optic Attenuator with Wavelength Dependent Loss Up to 0.3 dB (Attenuation), Attenuation 1 to 60 dB, Attenuation Resolution 0.01 dB, Insertion Loss 1 to 2 dB, Return Loss 50 dB. More details for DD-100-11-1300/1550-9/125-S-50-3U3U-1-1-485:1-6-PC can be seen below.

Product Specifications

Product Details

  • Part Number
    DD-100-11-1300/1550-9/125-S-50-3U3U-1-1-485:1-6-PC
  • Manufacturer
    OZ Optics Ltd.
  • Description
    Electrically controlled variable attenuator with 1m long, 0.9mm OD jacketed singlemode fiber with FC/Ultra PC connectors on both ends and 50dB return loss. PC: OEM version, no electronics and no calibration

General Parameters

  • Wavelength Dependent Loss
    Up to 0.3 dB (Attenuation)

Applications

  • Application
    Active gain equalization in DWDM Systems, Local power monitoring and feedback attenuator settings, Bit error testing, Trouble shooting receivers and other active fiber optic components, Simulating long distance fiber transmission, Design of fiber optic tr

Fiber Parameters

  • Fiber length
    1 m
  • Fiber Jacket
    0.9 mm
  • Fiber Mode
    Single Mode

Electrical Specifications

  • Current
    150 mA
  • Attenuation Accuracy
    ±0.3 dB, ±0.5 dB, ±1 dB
  • Attenuator Type
    Variable Optical Attenuator
  • DC Voltage
    5 V, 6 V, 12 V
  • Weight
    <250 g
  • Attenuation
    1 to 60 dB
  • Attenuation Resolution
    0.01 dB
  • Insertion Loss
    1 to 2 dB
  • Return Loss
    50 dB
  • Repeatability
    ±0.03 dB, ±0.10 dB
  • Response Time
    100 ms(Speed)
  • Sub-Category
    Electronic Optical Attenuator

Optical Specifications

  • Polarization Dependent Loss
    Up to 0.05 dB
  • Polarization Mode Dispersion(PMD)
    <0.01 ps
  • Operating Wavelength
    1300 nm, 1550 nm
  • Optical Input Power
    Up to 2 W

Connections & Interface

  • Interface
    RS/232
  • Optical Connector
    FC/UPC
