FA-300-3U3U-1300/1550-9/125-S-5-M1

Fiber Optic Attenuator by OZ Optics Ltd.
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to OZ Optics Ltd..

The FA-300-3U3U-1300/1550-9/125-S-5-M1 from OZ Optics Ltd. is a Fiber Optic Attenuator with Wavelength Dependent Loss ±0.1 dB, Attenuation 5 dB, Return Loss >50 dB, Attenuation Tolerance ±0.5 dB, ±0.7 dB, ±1 dB, Polarization Dependent Loss ±0.1 dB. More details for FA-300-3U3U-1300/1550-9/125-S-5-M1 can be seen below.

Product Specifications

Product Details

  • Part Number
    FA-300-3U3U-1300/1550-9/125-S-5-M1
  • Manufacturer
    OZ Optics Ltd.
  • Description

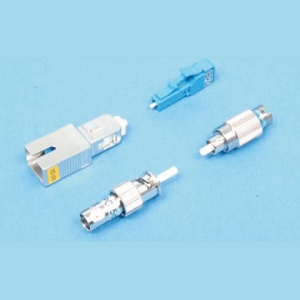

    Plug type, singlemode 5dB fixed attenuator at 1300/1550 nm with male to female FC/Ultra PC connectors

General Parameters

  • Wavelength Dependent Loss
    ±0.1 dB

Applications

  • Application
    Optical power equalization, CATV, LAN, and telecommunications, Test and measurement, Channel balancing for WDM systems, Receiver padding, Optical transmission systems

Fiber Parameters

  • Fiber Mode
    Single Mode

Environmental Conditions

  • Relative Humidity
    <85% RH
  • Operating Temperature
    -40 to 75 Degree C
  • Storage Temperature
    -40 to 80 Degree C

Electrical Specifications

  • Attenuation Method
    Plug Type
  • Attenuator Type
    Fixed Optical Attenuator
  • Attenuation
    5 dB
  • Return Loss
    >50 dB
  • Power Handling
    500 mW
  • Attenuation Tolerance
    ±0.5 dB, ±0.7 dB, ±1 dB

Optical Specifications

  • Polarization Extinction Ratio
    >25 dB, >30 dB
  • Polarization Dependent Loss
    ±0.1 dB
  • Operating Wavelength
    1300 nm, 1550 nm
  • Optical Input Power
    500 mW

Connections & Interface

  • Optical Connector
    FC/UPC
  • Optical Connectors Gender
    Plug
