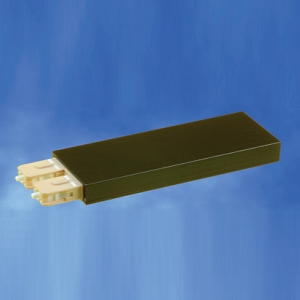

FA-400-SC-850-50/125-M-5

Fiber Optic Attenuator by OZ Optics Ltd.
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to OZ Optics Ltd..

The FA-400-SC-850-50/125-M-5 from OZ Optics Ltd. is a Fiber Optic Attenuator with Wavelength Dependent Loss ±0.1 dB, Attenuation 5 dB, Return Loss >50 dB, Attenuation Tolerance ±0.5 dB, ±0.7 dB, ±1 dB, Operating Wavelength 850 nm. More details for FA-400-SC-850-50/125-M-5 can be seen below.

Product Specifications

Product Details

  • Part Number
    FA-400-SC-850-50/125-M-5
  • Manufacturer
    OZ Optics Ltd.
  • Description
    Loopback style 5dB fixed attenuator at 850 nm with 50/125micron multi mode fiber and SC/Super PC male connectors

General Parameters

  • Wavelength Dependent Loss
    ±0.1 dB

Applications

  • Application
    Optical power equalization, CATV, LAN, and telecommunications, Test and measurement, Channel balancing for WDM systems, Receiver padding, Optical transmission systems

Fiber Parameters

  • Fiber Mode
    Multi Mode

Environmental Conditions

  • Relative Humidity
    <85% RH
  • Operating Temperature
    -40 to 75 Degree C
  • Storage Temperature
    -40 to 80 Degree C

Electrical Specifications

  • Attenuation Method
    Loopback
  • Attenuator Type
    Fixed Optical Attenuator
  • Attenuation
    5 dB
  • Return Loss
    >50 dB
  • Power Handling
    50 mW
  • Attenuation Tolerance
    ±0.5 dB, ±0.7 dB, ±1 dB

Optical Specifications

  • Polarization Extinction Ratio
    >25 dB, >30 dB
  • Operating Wavelength
    850 nm
  • Optical Input Power
    50 mW

Connections & Interface

  • Optical Connector
    SC/SPC
