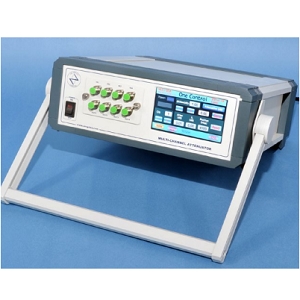

MCDD-1000

Fiber Optic Attenuator by OZ Optics Ltd.
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to OZ Optics Ltd..

The MCDD-1000 from OZ Optics Ltd. is a Fiber Optic Attenuator with Wavelength Dependent Loss Up to 0.3 dB (Attenuation), Attenuation 1 to 60 dB, Attenuation Resolution 0.01 dB, Insertion Loss 1 to 4 dB, Return Loss 35 dB, 40 dB, 50 dB, 60 dB. More details for MCDD-1000 can be seen below.

Product Specifications

Product Details

  • Part Number
    MCDD-1000
  • Manufacturer
    OZ Optics Ltd.

General Parameters

  • Wavelength Dependent Loss
    Up to 0.3 dB (Attenuation)

Applications

  • Application
    Bit error rate testing, Trouble shooting receivers and other active fiber optic components, Simulating long distance fiber transmission, Design of fiber optic transmitter/receiver circuitry, Power meter linearity checks, Power setting

Fiber Parameters

  • Fiber Mode
    Single Mode, Multi Mode, Polarization Maintaining

Environmental Conditions

  • Operating Temperature
    -10 to 55 Degree C
  • Storage Temperature
    -30 to 70 Degree C

Electrical Specifications

  • Attenuation Accuracy
    ±0.3 dB, ±0.5 dB, ±1 dB
  • Attenuator Type
    Variable Optical Attenuator
  • Dimensions
    280 x 300 x 100 mm (L x W x D)
  • Weight
    4 kg + 0.25 kg/channel
  • Attenuation
    1 to 60 dB
  • Attenuation Resolution
    0.01 dB
  • Insertion Loss
    1 to 4 dB
  • Return Loss
    35 dB, 40 dB, 50 dB, 60 dB
  • Power Consumption
    80 W
  • Power Supply
    Universal 110 to 220 VAC 50 to 60 Hz
  • Repeatability
    ±0.03 dB, ±0.10 dB, ±0.3 dB
  • Sub-Category
    Digital Optical Attenuator

Optical Specifications

  • Polarization Extinction Ratio
    20 dB, 25 dB, 30 dB
  • Polarization Dependent Loss
    Up to 0.05 dB
  • Operating Wavelength
    350 to 2050 nm
  • Optical Input Power
    Up to 50 mW

Connections & Interface

  • Interface
    USB
