PFA-XX-1300-9/125-3-1-S-5

Fiber Optic Attenuator by OZ Optics Ltd.
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to OZ Optics Ltd..

The PFA-XX-1300-9/125-3-1-S-5 from OZ Optics Ltd. is a Fiber Optic Attenuator with Wavelength Dependent Loss ±0.1 dB, Attenuation 5 dB, Return Loss >50 dB, Attenuation Tolerance ±0.5 dB, ±0.7 dB, ±1 dB, Operating Wavelength 1300 nm. More details for PFA-XX-1300-9/125-3-1-S-5 can be seen below.

Product Specifications

Product Details

  • Part Number
    PFA-XX-1300-9/125-3-1-S-5
  • Manufacturer
    OZ Optics Ltd.
  • Description

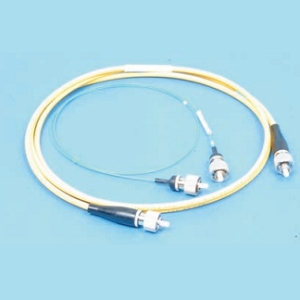

    Pigtail style 5dB fixed attenuator at 1300 nm with 1 meter long, 3 mm OD jacketed single mode unterminated fiber on both ends

General Parameters

  • Wavelength Dependent Loss
    ±0.1 dB

Applications

  • Application
    Optical power equalization, CATV, LAN, and telecommunications, Test and measurement, Channel balancing for WDM systems, Receiver padding, Optical transmission systems

Fiber Parameters

  • Fiber Mode
    Single Mode

Environmental Conditions

  • Relative Humidity
    <85% RH
  • Operating Temperature
    -40 to 75 Degree C
  • Storage Temperature
    -40 to 80 Degree C

Electrical Specifications

  • Attenuation Method
    Patchcord
  • Attenuator Type
    Fixed Optical Attenuator
  • Attenuation
    5 dB
  • Return Loss
    >50 dB
  • Power Handling
    Up to 2 W
  • Sub-Category
    Patchcord Attenuator
  • Attenuation Tolerance
    ±0.5 dB, ±0.7 dB, ±1 dB

Optical Specifications

  • Polarization Extinction Ratio
    >25 dB, >30 dB
  • Operating Wavelength
    1300 nm
  • Optical Input Power
    Up to 2 W
