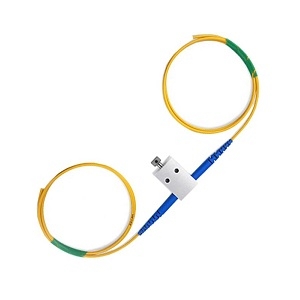

1550nm SM Manual Variable Optical Attenuator

Fiber Optic Attenuator by Seagnol Photonics
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Seagnol Photonics.

The 1550nm SM Manual Variable Optical Attenuator from Seagnol Photonics is a Fiber Optic Attenuator with Attenuation 0.6 to 60 dB, Return Loss 50 dB, Polarization Dependent Loss 0.1 dB, Operating Wavelength 1550 nm, Optical Input Power 500 mW. More details for 1550nm SM Manual Variable Optical Attenuator can be seen below.

Product Specifications

Product Details

  • Part Number
    1550nm SM Manual Variable Optical Attenuator
  • Manufacturer
    Seagnol Photonics

Applications

  • Application
    Optical Power Monitoring, Visible Application, Testing System, Lab And Research

Fiber Parameters

  • Fiber length
    0.5 to 2 m
  • Fiber Jacket
    250 µm, 900 µm
  • Fiber Mode
    Single Mode
  • Fiber Type
    SMF-28e fiber

Environmental Conditions

  • Operating Temperature
    -5 to 70 Degree C
  • Storage Temperature
    -40 to 85 Degree C

Electrical Specifications

  • Attenuator Type
    Variable Optical Attenuator
  • Bandwidth
    ±40 nm
  • Center Wavelength
    1550 nm
  • Dimensions
    26 x 18 x 8 mm
  • Attenuation
    0.6 to 60 dB
  • Return Loss
    50 dB
  • Original Loss
    0.6 dB
  • Sub-Category
    Manual Variable Optical Attenuator

Optical Specifications

  • Polarization Dependent Loss
    0.1 dB
  • Operating Wavelength
    1550 nm
  • Optical Input Power
    500 mW

Connections & Interface

  • Optical Connector
    FC/APC, FC/UPC, LC/APC, LC/APC, SC/APC, SU/APC
