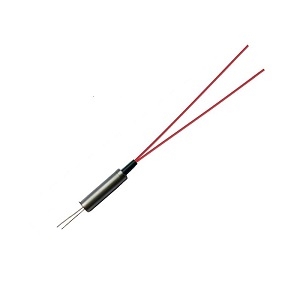

850nm SM MEMS VOA

Fiber Optic Attenuator by Seagnol Photonics
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Seagnol Photonics.

The 850nm SM MEMS VOA from Seagnol Photonics is a Fiber Optic Attenuator with Wavelength Dependent Loss 0.8 to 2 dB, Attenuation 45 dB, Insertion Loss 1 to 1.2 dB, Return Loss 45 dB, Polarization Dependent Loss 0.1 to 0.3 dB. More details for 850nm SM MEMS VOA can be seen below.

Product Specifications

Product Details

  • Part Number
    850nm SM MEMS VOA
  • Manufacturer
    Seagnol Photonics

General Parameters

  • Wavelength Dependent Loss
    0.8 to 2 dB

Applications

  • Application
    Fiber Communication, EDFA Power Protection, Fiber Line Protection, Testing System

Fiber Parameters

  • Fiber length
    0.5 to 2 m
  • Fiber Jacket
    250 µm, 900 µm
  • Fiber Mode
    Single Mode
  • Fiber Type
    HI 780 fber

Environmental Conditions

  • Operating Temperature
    0 to 70 Degree C
  • Storage Temperature
    -40 to 85 Degree C

Electrical Specifications

  • Attenuator Type
    Variable Optical Attenuator
  • Bandwidth
    ±10 nm
  • Center Wavelength
    850 nm
  • Driving Voltage
    6 V, 15 V
  • Attenuation
    45 dB
  • Insertion Loss
    1 to 1.2 dB
  • Return Loss
    45 dB
  • Response Time
    3 ms
  • Ripples
    0.05 dB
  • Sub-Category
    Micro-Electro Mechanical System Attenuator

Optical Specifications

  • Polarization Dependent Loss
    0.1 to 0.3 dB
  • Polarization Mode Dispersion(PMD)
    0.1 ps
  • Temperature Dependent Loss
    0.2 to 1.5 dB
  • Operating Wavelength
    850 nm
  • Optical Input Power
    500 mW

Connections & Interface

  • Optical Connector
    FC/APC, FC/UPC, LC/APC, LC/APC, SC/APC, SC/UPC, ST/UPC
