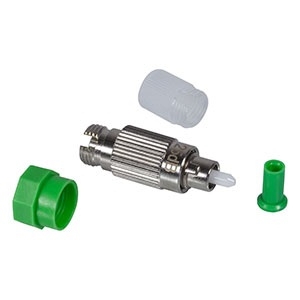

FA25T-APC

Fiber Optic Attenuator by Thorlabs Inc
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Thorlabs Inc.

The FA25T-APC from Thorlabs Inc is a Fiber Optic Attenuator with Attenuation 25 dB, Return Loss >60 dB, Attenuation Tolerance ±1.5 dB, Operating Wavelength 1240 to 1620 nm, Optical Input Power 1 W. More details for FA25T-APC can be seen below.

Product Specifications

Product Details

  • Part Number
    FA25T-APC
  • Manufacturer
    Thorlabs Inc
  • Description
    Fixed Fiber Optic Attenuator, 1240 - 1620 nm, 25 dB, FC/APC

Fiber Parameters

  • Fiber Mode
    Single Mode

Environmental Conditions

  • Operating Temperature
    -40 to 85 Degree C

Electrical Specifications

  • Attenuator Type
    Fixed Optical Attenuator
  • RoHS
    Yes
  • Weight
    0.009 kg
  • Attenuation
    25 dB
  • Return Loss
    >60 dB
  • Transmission Range
    0.32 ± 0.13%
  • Attenuation Tolerance
    ±1.5 dB

Optical Specifications

  • Operating Wavelength
    1240 to 1620 nm
  • Optical Input Power
    1 W

Connections & Interface

  • Optical Connector
    FC/PC

Technical Documents
