V1550PA

Fiber Optic Attenuator by Thorlabs Inc

Note: Your Quotation Request will be directed to Thorlabs Inc.

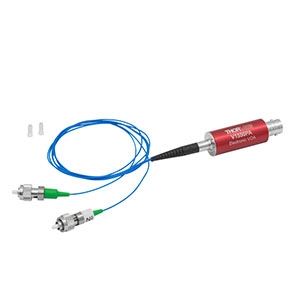

The V1550PA from Thorlabs is a MEMS-based, fiber-coupled Electronic Variable Optical Attenuator (VOA) that operates from 1450 nm to 1610 nm. The attenuator has attenuation from 1.5 to 25 dB and can handle an optical input power of up to 100 mW. It has integrated protection diodes for protection from electrostatic discharge (ESD), as well as from other over-voltage and under-voltage events. Driving voltages of 0 to 5 V (1 mA max) control optical transmission, which decreases with applied voltage. The VOA support modulation up to 1 kHz.

Product Specifications

Product Details

  • Part Number
    V1550PA
  • Manufacturer
    Thorlabs Inc
  • Description
    1450 to 1610 nm, FC/APC PM Fiber, Electronic Variable Optical Attenuator

General Parameters

  • Type
    Variable Optical Attenuator
  • Connector 1
    FC/APC
  • Connector 2
    BNC JAck
  • Connectors
    FC/APC
  • DC Voltage
    DC to 5 V
  • Fiber Coupled
    P15-U25D
  • Fiber diameter
    10.5 ± 0.5 µm
  • Mode
    Polarization Maintaining
  • Polarization Extinction Ratio
    16 dB
  • Relative Humidity
    5% to 85% RH
  • RoHS
    Yes
  • Attenuation
    1.5 to 25 dB
  • Operating Temperature
    0 to 40 Degree C
  • Optical Power w
    100 mW
  • Return Loss
    30 dB
  • Storage Temperature
    -20 to 70 Degree C
  • Wavelength
    1450 to 1610 nm
  • Note
    Beat Length Range: 3.0 mm to 5.0 mm
