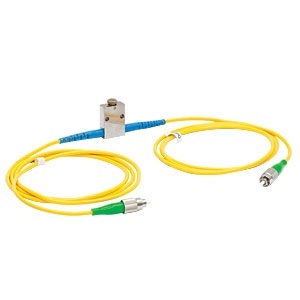

VOA780-APC

Fiber Optic Attenuator by Thorlabs Inc
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Thorlabs Inc.

The VOA780-APC from Thorlabs Inc is a Fiber Optic Attenuator with Attenuation 2.1 to 50 dB, Attenuation Resolution 0.15 dB, Insertion Loss <2.1 dB, Return Loss >40 dB, Operating Wavelength 760 to 800 nm. More details for VOA780-APC can be seen below.

Product Specifications

Product Details

  • Part Number
    VOA780-APC
  • Manufacturer
    Thorlabs Inc
  • Description
    SM Variable Attenuator, 780 nm, 50 dB, In-Line, FC/APC Connectors

Fiber Parameters

  • Fiber Mode
    Single Mode
  • Fiber Type
    HI780

Environmental Conditions

  • Operating Temperature
    0 to 70 Degree C
  • Storage Temperature
    -40 to 85 Degree C

Electrical Specifications

  • Attenuator Type
    Variable Optical Attenuator
  • Center Wavelength
    780 nm
  • Dimensions
    26 x 18 x 8 mm
  • RoHS
    Yes
  • Weight
    0.08 kg
  • Attenuation
    2.1 to 50 dB
  • Attenuation Resolution
    0.15 dB
  • Insertion Loss
    <2.1 dB
  • Return Loss
    >40 dB
  • Sub-Category
    In-line Optical Attenuator
  • Transmission Range
    0.001 to 61.7%
  • Wavelength accuracy
    ±20 nm

Optical Specifications

  • Operating Wavelength
    760 to 800 nm
  • Optical Input Power
    300 mW (Max)

Connections & Interface

  • Optical Connector
    FC/APC
