024TCJ-14180-20

Fiber Optic Cable by Corning Incorporated
99 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Corning Incorporated.

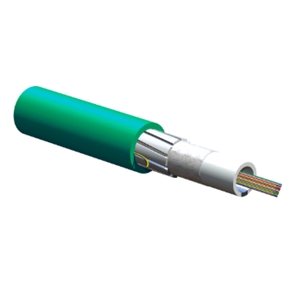

The 024TCJ-14180-20 from Corning Incorporated is a Fiber Optic Cable with Core Diameter 50 µm, Cable Diameter 9.7 mm, Operating Wavelength 850 nm, 1300 nm, Attenuation 1 to 3 dB/km. More details for 024TCJ-14180-20 can be seen below.

Product Specifications

Product Details

  • Part Number
    024TCJ-14180-20
  • Manufacturer
    Corning Incorporated
  • Description
    LSZH Ribbon Cable, 24 F, 50 µm multimode (OM3)

Applications

  • Applications
    General purpose, Horizontal, Vertical Riser

General Parameters

  • Outer Jacket Material
    Flame-Retardant
  • Core Diameter
    50 µm
  • Cable Diameter
    9.7 mm
  • Operating Wavelength
    850 nm, 1300 nm
  • Attenuation
    1 to 3 dB/km
  • Fiber Mode
    Multi Mode (OM3)
  • Bend Radius Operation
    97 mm
  • Buffer Tube Color
    Natural
  • Buffer Tube Diameter
    58 mm
  • Cable Geometry
    Round
  • Cable Type
    Ribbon Fiber Cable
  • Fiber Coloring
    Blue, Orange, Green, Brown, Slate, White, Red, Black, Yellow, Violet, Rose, Aqua
  • Fiber Compliance
    IEC 60793-2-10
  • Flame Rating
    LSZH (OFNR-LS)
  • Long-Term Tensile Strength
    400 N (89.92 lbf)
  • Nominal Outer Diameter
    9.7 mm
  • Outer Jacket Color
    Aqua
  • Short-Term Tensile Strength
    400 N (89.92 lbf)
  • Tape
    Water-Swellable
  • Tensile Strength Elements / Armoring
    Dielectric strength members
  • Weight
    94.8 kg/km

Environmental Conditions

  • Operating Temperature
    -40 to 70 Degree C
  • Outdoor / Indoor
    Indoor
  • RoHs
    Yes
  • Storage Temperature
    -40 to 70 Degree C
