216ZH4-Y4F40A20

Fiber Optic Cable by Corning Incorporated
99 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Corning Incorporated.

The 216ZH4-Y4F40A20 from Corning Incorporated is a Fiber Optic Cable with Coating Diameter 188 µm, Cable Length 6000 m (Cable), Cable Diameter 8 mm, Operating Wavelength 1310 nm, 1383 nm, 1550 nm, Attenuation 0.2 to 0.34 dB/km. More details for 216ZH4-Y4F40A20 can be seen below.

Product Specifications

Product Details

  • Part Number
    216ZH4-Y4F40A20
  • Manufacturer
    Corning Incorporated
  • Description

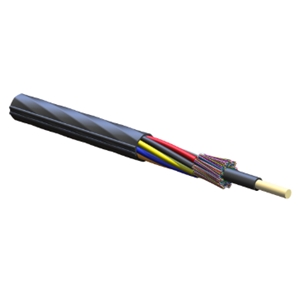

    MiniXtend® HD Cable with Binderless* FastAccess® Technology, 216 F, SMF-28® Ultra fiber, Single-mode (OS2)

Applications

  • Applications
    Miniduct

General Parameters

  • Outer Jacket Material
    Polyethylene (PE)
  • Coating Diameter
    188 µm
  • Cable Length
    6000 m (Cable)
  • Cable Diameter
    8 mm
  • Bend Diameter Installation
    160 mm
  • Bend Diameter Operation
    120 mm
  • Operating Wavelength
    1310 nm, 1383 nm, 1550 nm
  • Attenuation
    0.2 to 0.34 dB/km
  • Fiber Mode
    Single Mode (OS2)
  • Cutoff Wavelength
    1260 nm
  • Cladding Diameter
    125 µm
  • Buffer Tube Color
    Blue, Orange, Green, Brown, Slate, White, Red, Black, Yellow, Violet, Rose, Aqua
  • Buffer Tube Diameter
    1.7 mm
  • Cable Geometry
    Round
  • Cable Type
    Loose Tube Cable
  • Color Code Standards
    Telcordia
  • Fiber Coloring
    Blue, Orange, Green, Brown, Slate, White, Red, Black, Yellow, Violet, Rose, Aqua
  • Fiber Compliance
    ITU-T G.652.D and ITU-T G.657.A1
  • Mode Field Diameter
    9.2 µm
  • Nominal Outer Diameter
    8 mm
  • Outer Jacket Color
    Black
  • Outer Jacket Thickness
    0.5 mm
  • Short-Term Tensile Strength
    1334 N (299.9 lbf)
  • Weight
    57 kg/km

Environmental Conditions

  • Operating Temperature
    -40 to 70 Degree C
  • Outdoor / Indoor
    Outdoor
  • RoHs
    Yes
  • Storage Temperature
    -40 to 70 Degree C
