864ZQ4-14700S53

Fiber Optic Cable by Corning Incorporated
99 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Corning Incorporated.

The 864ZQ4-14700S53 from Corning Incorporated is a Fiber Optic Cable with Cable Diameter 22.9 mm, Operating Wavelength 1310 nm, 1383 nm, 1550 nm, Attenuation 0.25 to 0.35 dB/km. More details for 864ZQ4-14700S53 can be seen below.

Product Specifications

Product Details

  • Part Number
    864ZQ4-14700S53
  • Manufacturer
    Corning Incorporated
  • Description

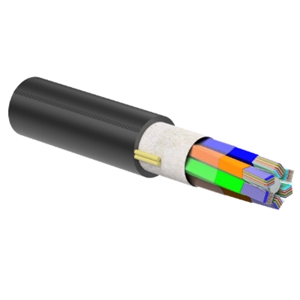

    RocketRibbon® HD Cable-250, 864 F, Dielectric, Gel-Free, Single-mode (OS2)

Applications

  • Applications
    Aerial, Duct

General Parameters

  • Outer Jacket Material
    Polyethylene (PE)
  • Cable Diameter
    22.9 mm
  • Operating Wavelength
    1310 nm, 1383 nm, 1550 nm
  • Attenuation
    0.25 to 0.35 dB/km
  • Fiber Mode
    Single Mode (OS2)
  • Bend Radius Operation
    687 mm
  • Cable Geometry
    Round
  • Cable Type
    Gel-Free Cable, Ribbon Fiber Cable
  • Fiber Coloring
    Blue, Orange, Green, Brown, Slate, White, Red, Black, Yellow, Violet, Rose, Aqua
  • Fiber Compliance
    ITU-T G.652.D and ITU-T G.657.A1
  • Long-Term Tensile Strength
    890 N (200.08 lbf)
  • Nominal Outer Diameter
    22.9 mm
  • Outer Jacket Color
    Black
  • Short-Term Tensile Strength
    2700 N (606.98 lbf)
  • Tape
    Water blocking tape, Yarns
  • Tensile Strength Elements / Armoring
    Dielectric strength members
  • Weight
    328.1 kg/km

Environmental Conditions

  • Operating Temperature
    -40 to 70 Degree C
  • Outdoor / Indoor
    Outdoor
  • RoHs
    Yes
  • Storage Temperature
    -40 to 70 Degree C
