BC03597-12-BR

Fiber Optic Cable by OFS Global
83 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to OFS Global.

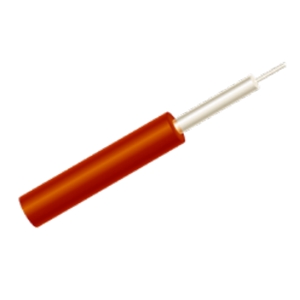

The BC03597-12-BR from OFS Global is a Fiber Optic Cable with Core Diameter 400 ± 8 µm, Cable Diameter 2.2 mm, Operating Wavelength 650 nm, 850 nm, Attenuation <8 dB/km, Numerical Aperture 0.37. More details for BC03597-12-BR can be seen below.

Product Specifications

Product Details

  • Part Number
    BC03597-12-BR
  • Manufacturer
    OFS Global
  • Description
    Simplex 2.2 mm Step-Index 400 µm HCS Plenum V-System Fiber Optic Cables

Applications

  • Applications
    Factory Automation, Industrial Communications, Laser Power Delivery, Near-IR Spectroscopy, Plenum Installations

Connections & Interface

  • Optical Connector
    V-Pin

General Parameters

  • Outer Jacket Material
    Polyvinyl Chloride (PVC)
  • Outer Cable Diameter
    2.2 mm
  • Core Diameter
    400 ± 8 µm
  • Cable Diameter
    2.2 mm
  • Operating Wavelength
    650 nm, 850 nm
  • Attenuation
    <8 dB/km
  • Fiber Mode
    Multi Mode
  • Numerical Aperture
    0.37
  • Bend Radius Operation
    45 mm
  • Cable Type
    Simplex Cable
  • Construction
    Simplex V-System
  • Fiber Type
    CF01493-12, 400 µm HCS 0.37 NA Low OH Optical Fiber
  • Installation Load
    25 lb. (111 N)
  • Operating Load
    10 lb. (44 N)
  • Outer Jacket Color
    Brown
  • Weight
    6.5 kg/km

Environmental Conditions

  • Operating Temperature
    0 to 75 Degree C
  • RoHs
    Yes
  • Storage Temperature
    -20 to 75 Degree C
