C26137

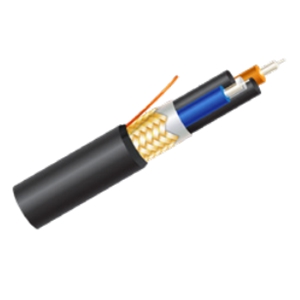

Fiber Optic Cable by OFS Global
83 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to OFS Global.

The C26137 from OFS Global is a Fiber Optic Cable with Core Diameter 62.5 µm, Cable Diameter 8.0 ± 0.4 mm, Operating Wavelength 850 nm, 1300 nm, Attenuation 3 to 5 dB/km. More details for C26137 can be seen below.

Product Specifications

Product Details

  • Part Number
    C26137
  • Manufacturer
    OFS Global
  • Description
    2-Fiber Waterblocked LSZH 62.5/200/230/500 Breakout

Applications

  • Applications
    Nuclear Power Plants, Offshore Marine Platforms, Shipboard Systems, Wind Turbines

General Parameters

  • Outer Jacket Material
    Low Smoke Zero Halogen (LSZH)
  • Outer Cable Diameter
    8.0 ± 0.4 mm
  • Core Diameter
    62.5 µm
  • Cable Diameter
    8.0 ± 0.4 mm
  • Operating Wavelength
    850 nm, 1300 nm
  • Attenuation
    3 to 5 dB/km
  • Fiber Mode
    Multi Mode
  • Bend Radius Operation
    80 mm
  • Cable Type
    Breakout Cable
  • Construction
    2-Fiber Waterblocked
  • Fiber Type
    Multimode Graded-Index
  • Installation Load
    530 lb. (2358 N)
  • Operating Load
    265 lb. (1179 N)
  • Outer Jacket Color
    Black
  • Specialty Testing
    >500 Cycles
  • Weight
    <70 kg/km

Environmental Conditions

  • Operating Temperature
    -20 to 80 Degree C
  • Outdoor / Indoor
    Indoor/Outdoor
  • RoHs
    Yes
  • Storage Temperature
    -40 to 80 Degree C

Technical Documents
