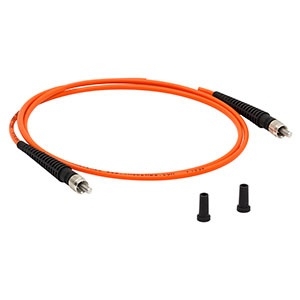

M38L01

Fiber Optic Cable by Thorlabs Inc
Request Quote

Note: Your Quotation Request will be directed to Thorlabs Inc.

The M38L01 from Thorlabs Inc is a Fiber Optic Cable with Core Diameter 200 ± 5 µm, Coating Diameter 500 ±30 µm, Cable Length 1 m, Cable Diameter 3 mm, Operating Wavelength 400 to 2200 nm. More details for M38L01 can be seen below.

Product Specifications

Product Details

  • Part Number
    M38L01
  • Manufacturer
    Thorlabs Inc
  • Description
    Ø200 µm, 0.39 NA, SMA-SMA Fiber Patch Cable, Low OH, 1 m Long

Applications

  • Applications
    Spectroscopy, Illumination, LED Energy Transmission, Medical Instruments, Optogenetics

Connections & Interface

  • Optical Connector
    SMA-905
  • Connector 1
    SMA-905
  • Connector 2
    SMA-905

General Parameters

  • Outer Jacket Material
    Polyvinyl Chloride (PVC)
  • Core Diameter
    200 ± 5 µm
  • Coating Diameter
    500 ±30 µm
  • Cable Length
    1 m
  • Cable Diameter
    3 mm
  • Operating Wavelength
    400 to 2200 nm
  • Fiber Mode
    Multi Mode
  • Numerical Aperture
    0.39
  • Cladding Diameter
    225 ±5 µm
  • Fiber Type
    FT200EMT
  • Jacket Diameter
    3 mm
  • Long Term Bend Radius
    42 mm
  • Outer Jacket Color
    Orange
  • Short Term Bend Radius
    21 mm
  • Weight
    0.02 kg

Environmental Conditions

  • RoHs
    Yes
