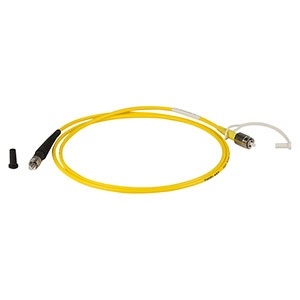

P2-460B-PCSMA-1

Fiber Optic Cable by Thorlabs Inc
418 more products from this company
Request Quote

Note: Your Quotation Request will be directed to Thorlabs Inc.

The P2-460B-PCSMA-1 from Thorlabs Inc is a Fiber Optic Cable with Coating Diameter 245 ± 15 µm, Cable Length 1 m, Cable Diameter 3 mm, Operating Wavelength 488 to 633 nm, Attenuation <50 dB/km. More details for P2-460B-PCSMA-1 can be seen below.

Product Specifications

Product Details

  • Part Number
    P2-460B-PCSMA-1
  • Manufacturer
    Thorlabs Inc
  • Description
    Single Mode Patch Cable, 488 - 633 nm, FC/PC to SMA, Ø3 mm Jacket, 1 m Long

Connections & Interface

  • Optical Connector
    FC/PC, SMA-905
  • Connector 1
    FC/PC
  • Connector 2
    SMA-905

General Parameters

  • Outer Jacket Material
    Polyvinyl Chloride (PVC)
  • Coating Diameter
    245 ± 15 µm
  • Cable Length
    1 m
  • Cable Diameter
    3 mm
  • Operating Wavelength
    488 to 633 nm
  • Attenuation
    <50 dB/km
  • Fiber Mode
    Single Mode
  • Cutoff Wavelength
    350 to 470 nm
  • Cladding Diameter
    125 ± 1 µm
  • Fiber Type
    SM450
  • Jacket Diameter
    3 mm
  • Mode Field Diameter
    2.8 to 4.1 µm
  • Outer Jacket Color
    Yellow
  • Weight
    12 g

Environmental Conditions

  • RoHs
    Yes
Click to view more product details on manufacturer's website
