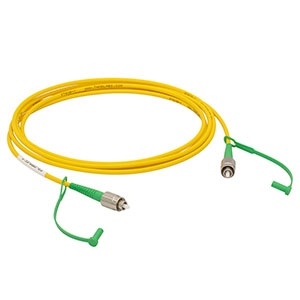

P3-1950-FC-2

Fiber Optic Cable by Thorlabs Inc
418 more products from this company
Request Quote

Note: Your Quotation Request will be directed to Thorlabs Inc.

The P3-1950-FC-2 from Thorlabs Inc is a Fiber Optic Cable with Coating Diameter 245 ± 10 µm, Cable Length 2 m, Cable Diameter 3 mm, Operating Wavelength 1850 to 2200 nm, Attenuation 5 dB/km. More details for P3-1950-FC-2 can be seen below.

Product Specifications

Product Details

  • Part Number
    P3-1950-FC-2
  • Manufacturer
    Thorlabs Inc
  • Description
    Single Mode Fiber Patch Cable, 1850 - 2200 nm, FC/APC, Ø3 mm Jacket, 2 m Long

Connections & Interface

  • Optical Connector
    FC/APC

General Parameters

  • Outer Jacket Material
    Polyvinyl Chloride (PVC)
  • Coating Diameter
    245 ± 10 µm
  • Cable Length
    2 m
  • Cable Diameter
    3 mm
  • Operating Wavelength
    1850 to 2200 nm
  • Attenuation
    5 dB/km
  • Fiber Mode
    Single Mode
  • Cutoff Wavelength
    1720 ± 80 nm
  • Numerical Aperture
    0.2
  • Cladding Diameter
    125 ± 1 µm
  • Back Reflection
    60 dB
  • Fiber Type
    SM1950
  • Jacket Diameter
    3 mm
  • Mode Field Diameter
    8.0 µm
  • Outer Jacket Color
    Yellow
  • Weight
    0.02 kg

Environmental Conditions

  • RoHs
    Yes
Click to view more product details on manufacturer's website
