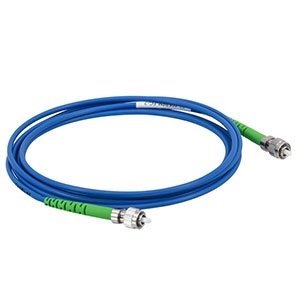

P3-405BPM-FC-2

Fiber Optic Cable by Thorlabs Inc
418 more products from this company
Request Quote

Note: Your Quotation Request will be directed to Thorlabs Inc.

The P3-405BPM-FC-2 from Thorlabs Inc is a Fiber Optic Cable with Coating Diameter 245 µm ± 15 µm, Cable Length 2 m, Cable Diameter 3 mm, Operating Wavelength 400 to 680 nm, Cutoff Wavelength 380 ± 20 nm. More details for P3-405BPM-FC-2 can be seen below.

Product Specifications

Product Details

  • Part Number
    P3-405BPM-FC-2
  • Manufacturer
    Thorlabs Inc
  • Description
    PM Patch Cable, PANDA, 405 nm, Ø3 mm Jacket, FC/APC, 2 m Long

Connections & Interface

  • Optical Connector
    FC/APC

General Parameters

  • Outer Jacket Material
    Polyvinyl Chloride (PVC)
  • Coating Diameter
    245 µm ± 15 µm
  • Cable Length
    2 m
  • Cable Diameter
    3 mm
  • Operating Wavelength
    400 to 680 nm
  • Fiber Mode
    Polarization Maintaining
  • Cutoff Wavelength
    380 ± 20 nm
  • Numerical Aperture
    0.12
  • Cladding Diameter
    125 ± 2 µm
  • Alignment Wavelength
    405 nm
  • Extinction Ratio
    15 dB
  • Fiber Type
    PM-S405-XP (PANDA)
  • Insertion Loss
    1.5 dB
  • Return Loss
    60 dB
  • Jacket Diameter
    3 mm
  • Key Alignment
    Slow Axis
  • Key Width
    Slow Axis
  • Mode Field Diameter
    3.3 ± 0.5 µm, 4.6 ± 0.5 µm
  • Outer Jacket Color
    Blue
  • Weight
    0.03 kg

Environmental Conditions

  • Operating Temperature
    0 to 70 Degree C
  • RoHs
    Yes
  • Storage Temperature
    -45 to 85 Degree C
