P3-980A-FC-5

Fiber Optic Cable by Thorlabs Inc
418 more products from this company
Request Quote

Note: Your Quotation Request will be directed to Thorlabs Inc.

The P3-980A-FC-5 from Thorlabs Inc is a Fiber Optic Cable with Coating Diameter 245 ±15 µm, Cable Length 5 m, Cable Diameter 3 mm, Operating Wavelength 980 to 1550 nm, Attenuation <2 dB/km. More details for P3-980A-FC-5 can be seen below.

Product Specifications

Product Details

  • Part Number
    P3-980A-FC-5
  • Manufacturer
    Thorlabs Inc
  • Description

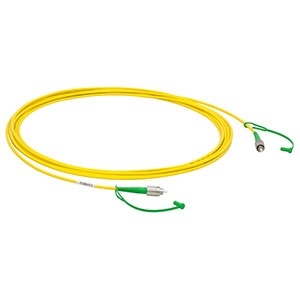

    Single Mode Patch Cable, 980 - 1550 nm, FC/APC, Ø3 mm Jacket, 5 m Long

Connections & Interface

  • Optical Connector
    FC/APC

General Parameters

  • Outer Jacket Material
    Polyvinyl Chloride (PVC)
  • Coating Diameter
    245 ±15 µm
  • Cable Length
    5 m
  • Cable Diameter
    3 mm
  • Operating Wavelength
    980 to 1550 nm
  • Attenuation
    <2 dB/km
  • Fiber Mode
    Single Mode
  • Cutoff Wavelength
    870 to 970 nm
  • Cladding Diameter
    125 ±1 µm
  • Back Reflection
    60 dB
  • Fiber Type
    SM980-5.8-125
  • Jacket Diameter
    3 mm
  • Mode Field Diameter
    5.3 to 6.4 µm
  • Outer Jacket Color
    Yellow
  • Weight
    0.05 kg
Click to view more product details on manufacturer's website
