P4-630AR-2

Fiber Optic Cable by Thorlabs Inc
418 more products from this company
Request Quote

Note: Your Quotation Request will be directed to Thorlabs Inc.

The P4-630AR-2 from Thorlabs Inc is a Fiber Optic Cable with Coating Diameter 245 ± 15 µm, Cable Length 2 m, Cable Diameter 3 mm, Operating Wavelength 633 to 780 nm, Attenuation <15 dB/km. More details for P4-630AR-2 can be seen below.

Product Specifications

Product Details

  • Part Number
    P4-630AR-2
  • Manufacturer
    Thorlabs Inc
  • Description

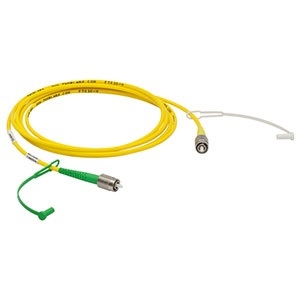

    SM Patch Cable, AR-Coated FC/APC to Uncoated FC/PC, 633 - 780 nm, 2 m Long

Applications

  • Applications
    Fiber Collimation Packages, FiberPorts

Connections & Interface

  • Optical Connector
    FC/APC, FC/PC
  • Connector 1
    FC/APC
  • Connector 2
    FC/PC

General Parameters

  • Outer Jacket Material
    Polyvinyl Chloride (PVC)
  • Coating Diameter
    245 ± 15 µm
  • Cable Length
    2 m
  • Cable Diameter
    3 mm
  • Operating Wavelength
    633 to 780 nm
  • Attenuation
    <15 dB/km
  • Fiber Mode
    Single Mode
  • Cutoff Wavelength
    500 to 600 nm
  • Cladding Diameter
    125 ± 1 µm
  • Fiber Type
    SM600
  • Jacket Diameter
    3 mm
  • Mode Field Diameter
    3.6 to 5.3 µm
  • Average Reflectance
    Ravg <0.5%
  • Outer Jacket Color
    Yellow
  • Weight
    0.02 kg
Click to view more product details on manufacturer's website
