P5-488PM-FC-1

Fiber Optic Cable by Thorlabs Inc
418 more products from this company
Request Quote

Note: Your Quotation Request will be directed to Thorlabs Inc.

The P5-488PM-FC-1 from Thorlabs Inc is a Fiber Optic Cable with Coating Diameter 245 ± 15 µm, Cable Length 1 m, Cable Diameter 3 mm, Operating Wavelength 460 to 700 nm, Cutoff Wavelength 410 ± 40 nm. More details for P5-488PM-FC-1 can be seen below.

Product Specifications

Product Details

  • Part Number
    P5-488PM-FC-1
  • Manufacturer
    Thorlabs Inc
  • Description

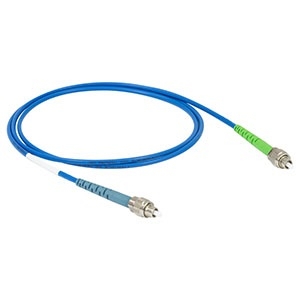

    PM Patch Cable, PANDA, 488 nm, FC/PC to FC/APC, 1 m Long

Applications

  • Applications
    Telecom, Gyroscopic, and Optical Sensor Systems

Connections & Interface

  • Optical Connector
    FC/PC, FC/APC
  • Connector 1
    FC/PC
  • Connector 2
    FC/APC

General Parameters

  • Outer Jacket Material
    Polyvinyl Chloride (PVC)
  • Coating Diameter
    245 ± 15 µm
  • Cable Length
    1 m
  • Cable Diameter
    3 mm
  • Operating Wavelength
    460 to 700 nm
  • Fiber Mode
    Polarization Maintaining
  • Cutoff Wavelength
    410 ± 40 nm
  • Numerical Aperture
    0.12
  • Cladding Diameter
    125 ± 2 µm
  • Alignment Wavelength
    488 nm
  • Extinction Ratio
    18 dB
  • Fiber Type
    PM460-HP (PANDA)
  • Insertion Loss
    1.5 dB
  • Return Loss
    50 to 60 dB
  • Jacket Diameter
    3 mm
  • Key Alignment
    Slow Axis
  • Key Width
    Slow Axis
  • Mode Field Diameter
    3.3 ± 0.5 µm
  • Outer Jacket Color
    Blue
  • Weight
    0.02 kg

Environmental Conditions

  • Operating Temperature
    0 to 70 Degree C
  • RoHs
    Yes
  • Storage Temperature
    -45 to 85 Degree C
Click to view more product details on manufacturer's website
