FOC-12N-111-9/125-SSS-1550-55-XXX-1-1

Fiber Optic Circulator by OZ Optics Ltd.
4 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to OZ Optics Ltd..

The FOC-12N-111-9/125-SSS-1550-55-XXX-1-1 from OZ Optics Ltd. is a Fiber Optic Circulator with Insertion Loss 0.7 dB, Wavelength 1550 nm, Return Loss 55 dB, Optical Power 250 mW(Power Handling). More details for FOC-12N-111-9/125-SSS-1550-55-XXX-1-1 can be seen below.

Product Specifications

Product Details

  • Part Number
    FOC-12N-111-9/125-SSS-1550-55-XXX-1-1
  • Manufacturer
    OZ Optics Ltd.
  • Description

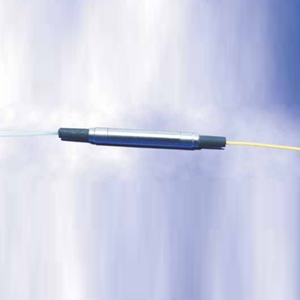

    Miniature inline fiber optic circulator for 1550 nm with 55dB return loss, with 1 meter long, 1 mm OD cabled Corning SMF-28 fiber pigtails, with no connectors.

General Parameters

  • Insertion Loss
    0.7 dB
  • Type
    Polarization Maintaining Optical Circulator
  • Wavelength
    1550 nm
  • No. of Ports
    3 Port
  • Return Loss
    55 dB
  • Extinction Ratio
    20 dB, 25 dB, 30 dB
  • Mode
    Single Mode
  • Peak Isolation
    >30 to 40 dB

Applications

  • Application
    DWDM networks, Chromatic dispersion compensation, Optical add drop modules (OADM), Fiber amplifiers, Fiber sensors, OCT systems

Optical Specifications

  • Optical Power
    250 mW(Power Handling)
  • Fiber Jacket
    1 mm (Cable)
  • Fiber length
    1 m
  • Fiber Type
    Corning SMF-28
  • Power Handling
    250 mW
