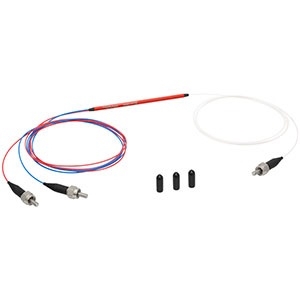

WMC1H1S

Fiber Optic Circulator by Thorlabs Inc
28 more products from this company
Request Quote

Note: Your Quotation Request will be directed to Thorlabs Inc.

The WMC1H1S from Thorlabs Inc is a Fiber Optic Circulator with Insertion Loss <1.3 to 1 dB, Wavelength 400 to 900 nm, Isolation >8.5 dB, Optical Power 2 to 4 W. More details for WMC1H1S can be seen below.

Product Specifications

Product Details

  • Part Number
    WMC1H1S
  • Manufacturer
    Thorlabs Inc
  • Description
    Wideband Multimode Circulator, 50 µm Core, 0.22 NA to 105 µm Core, 0.22 NA

General Parameters

  • Insertion Loss
    <1.3 to 1 dB
  • Type
    Wideband Circulator
  • Wavelength
    400 to 900 nm
  • No. of Ports
    3 Port
  • Isolation
    >8.5 dB
  • Connectors
    SMA905
  • Dimension
    (Dia) 3.2 x 75 mm
  • Directivity
    >40 to 45 dB
  • Mode
    Multi Mode
  • Tensile Load
    10 N
  • Minimum Bend Radius
    >30 mm

Environmental Conditions

  • Operating Temperature
    0 to 60 Degree C
  • Storage Temperature
    -40 to 85 Degree C

Applications

  • Application
    Fluorescence, Spectroscopy, or Optogenetics Applications

Optical Specifications

  • Optical Power
    2 to 4 W
  • Fiber diameter
    50 µm, 105 µm
  • Fiber Jacket
    900 µm
  • Fiber length
    0.8 m +0.075 m/-0.0 m
  • Fiber Type
    FG050UGA, FG105UCA
  • Numerical Aperture
    0.22
Click to view more product details on manufacturer's website
