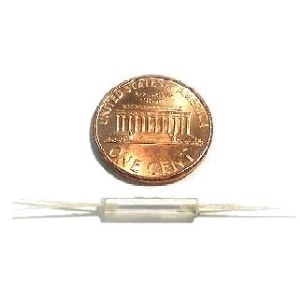

954P

Fiber Optic Coupler by Evanescent Optics Inc.
2 more products from this company
Request Quote

Note: Your Quotation Request will be directed to Evanescent Optics Inc..

The 954P from Evanescent Optics Inc. is a Fiber Optic Coupler with Excess Loss <0.1 to 0.2 dB, Wavelength 0.590 to 2.04 µm, Return Loss 70 dB. More details for 954P can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    954P
  • Manufacturer
    Evanescent Optics Inc.
  • Description
    Fixed Ratio Polarization Maintaining Evanescent Couplers and Taps

General Parameters

  • Coupling Ratio
    50:50, 80:20, 90:10, 99:1
  • Excess Loss
    <0.1 to 0.2 dB
  • Connectors
    FC/SPC, FC/APC, LC/APC, SC/APC, SC/PC
  • Wavelength
    0.590 to 2.04 µm
  • Return Loss
    70 dB
  • Polarization Extinction Ratio
    <-25 to -23 dB
  • Dimension
    0.59 x 0.1 x 0.1 Inches, 1.100 x Dia. 0.19 Inches (Dia x L)
  • Split Ratio Tolerance
    ±3%, ±2%, ±1.5, ±0.25%, ±1%

Fiber Parameters

  • Fiber Jacket
    900 µm, 3 mm
  • Fiber Pigtail Length
    1 m
  • Fiber Modes
    Polarization Maintaining

Temperature

  • Operating Temperature
    -15 to 55 Degree C
