F1PLC04SCU

Fiber Optic Coupler by Fiber Instrument Sales
31 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Fiber Instrument Sales.

The F1PLC04SCU from Fiber Instrument Sales is a Fiber Optic Coupler with Insertion Loss 7 to 21.5 dB, Wavelength 1260 to 1650 nm, Directivity 55 dB, Return Loss 50 to 55 dB, Polarization Dependent Loss 0.1 to 35 dB. More details for F1PLC04SCU can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    F1PLC04SCU
  • Manufacturer
    Fiber Instrument Sales
  • Description

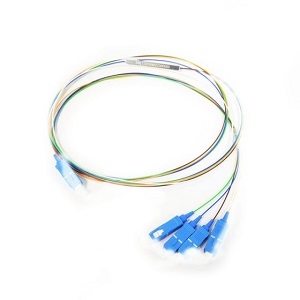

    Planar Lightwave Circuit Splitter 1x4 PLC with SC/UPC Fan Out

General Parameters

  • Coupler Type
    Planar Lightwave Circuit Splitter
  • Configuration
    1 x 4, 1 x 8, 1 x 16, 1 x 32, 1 x 64
  • Insertion Loss
    7 to 21.5 dB
  • Connectors
    SC/UPC, SC/APC
  • Wavelength
    1260 to 1650 nm
  • Directivity
    55 dB
  • Return Loss
    50 to 55 dB
  • RoHS
    Yes
  • Uniformity
    0.5 to 1.9 dB
  • Polarization Dependent Loss
    0.1 to 35 dB
  • Dimension
    40 x 4 x 4 mm (L x W x H), 50 x 4 x 7 mm (L x W x H), 60 x 4 x 12 mm (L x W x H)
  • Thermal stability
    0.5 to 1 dB
  • Wavelength Dependant Loss
    1 dB

Applications

  • Application
    Broadband system applications

Fiber Parameters

  • Fiber Jacket
    250 µm, 900 µm
  • Fiber Pigtail Length
    1.2 m
  • Fiber Coupled
    SMF-28e
  • Fiber Modes
    Single Mode

Temperature

  • Operating Temperature
    -40 to 85 Degree C
  • Storage Temperature
    -40 to 85 Degree C
