PMFC

Fiber Optic Coupler by KS Photonics
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to KS Photonics.

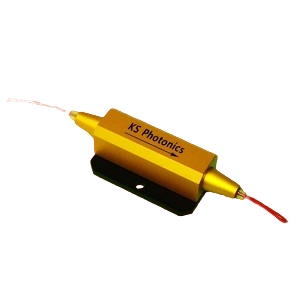

The PMFC from KS Photonics is a Fiber Optic Coupler with Insertion Loss <0.35 dB, Wavelength 633 nm, 830 nm, 980 nm, 1064 nm, 1310 nm, 1550 nm. More details for PMFC can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    PMFC
  • Manufacturer
    KS Photonics

General Parameters

  • Coupling Ratio
    0 to 99%
  • Insertion Loss
    <0.35 dB
  • Directionality
    Directional
  • Connectors
    FC/PC
  • Wavelength
    633 nm, 830 nm, 980 nm, 1064 nm, 1310 nm, 1550 nm
  • Polarization Extinction Ratio
    >20 to 25 dB

Applications

  • Application
    Polarization maintaining fiber laser, Fiber Gyroscope, Fiber sensor, Interferometry
  • Application Industry
    Fiber Optic Sensors

Fiber Parameters

  • Fiber Jacket
    900 µm, 2.4 mm
  • Fiber Pigtail Length
    1 m, 2 m
  • Fiber Modes
    Polarization Maintaining

Technical Documents
