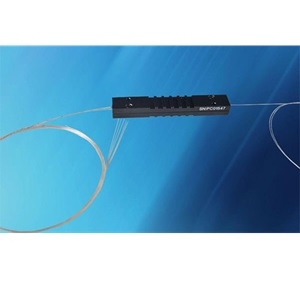

(6+1) x1 Side Pump Combiner

Fiber Optic Coupler by LIGHTEL
18 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to LIGHTEL.

The (6+1) x1 Side Pump Combiner from LIGHTEL is a Fiber Optic Coupler with Optical Power Up to 500 W, Insertion Loss <0.2 dB, Wavelength 1000 to 1600 nm (Signal), 900 to 1000 nm (Pump). More details for (6+1) x1 Side Pump Combiner can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    (6+1) x1 Side Pump Combiner
  • Manufacturer
    LIGHTEL
  • Description
    900 to 1600 nm Side Pump Combiner with <0.2 dB Insertion Loss

General Parameters

  • Configuration
    7 x 1, 6 x 1
  • Optical Power
    Up to 500 W
  • Insertion Loss
    <0.2 dB
  • Wavelength
    1000 to 1600 nm (Signal), 900 to 1000 nm (Pump)
  • Relative Humidity
    5 to 85%
  • Dimension
    100 x 15 x 10 mm
  • Power Handling
    Up to 500 W

Fiber Parameters

  • Fiber diameter
    200/220 µm, 220/242 µm, 105/125 µm, 106.5/125 µm (Pump), 20/400 µm, 25/250 µm, 9/125 µm, 12/125 µm (Signal)
  • Fiber length
    0.5 m, 1 m, 1.5 m, 2 m

Temperature

  • Operating Temperature
    20 to 40 Degree C
  • Storage Temperature
    -40 to 85 Degree C
