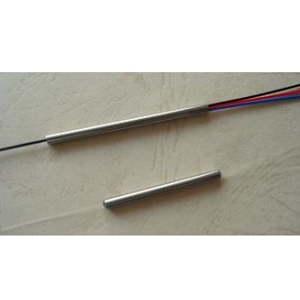

1x4CP-W

Fiber Optic Coupler by Opneti
55 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Opneti.

The 1x4CP-W from Opneti is a Fiber Optic Coupler with Optical Power 1 W, Excess Loss 0.2 to 0.3 dB, Insertion Loss <7.1 to 7.4 dB, Bandwidth ±40 nm, Wavelength 1310 to 1550 nm. More details for 1x4CP-W can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    1x4CP-W
  • Manufacturer
    Opneti

General Parameters

  • Configuration
    1 x 4
  • Optical Power
    1 W
  • Excess Loss
    0.2 to 0.3 dB
  • Insertion Loss
    <7.1 to 7.4 dB
  • Bandwidth
    ±40 nm
  • Connectors
    FC/APC, FC/UPC, SC/APC, SC/UPC, LC/UPC, LC/APC, MU/UPC
  • Wavelength
    1310 to 1550 nm
  • Directivity
    >55 dB
  • Return Loss
    >50 dB
  • Grade
    Grade P, Grade A
  • Uniformity
    <1.2 to 1.6 dB
  • Polarization Dependent Loss
    <0.2 to 0.25 dB
  • Dimension
    (Dia) 3 x 54 mm, (Dia) 4.0 x 40 mm, (Dia) 4.0 x 75 mm, (Dia) 4.0 x 56 mm
  • Power Handling
    1 W

Applications

  • Application
    Optical Communication Systems, FTTH, Optical Fiber Sensor

Fiber Parameters

  • Fiber Jacket
    900 µm
  • Fiber Coupled
    SMF-28e
  • Fiber length
    1 m
  • Fiber Modes
    Single Mode

Temperature

  • Operating Temperature
    -40 to 85 Degree C
