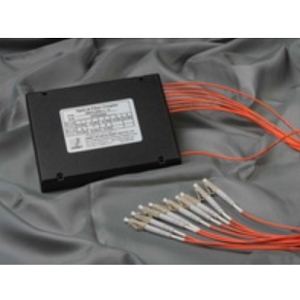

1xN,2XN,NXN MM FBT Coupler

Fiber Optic Coupler by Shanghai Fsphotonics Technology
18 more products from this company
Request Quote

Note: Your Quotation Request will be directed to Shanghai Fsphotonics Technology.

The 1xN,2XN,NXN MM FBT Coupler from Shanghai Fsphotonics Technology is a Fiber Optic Coupler with Excess Loss 0.7 to 3 dB, Insertion Loss 4.2 to 16 dB, Wavelength 850 nm, 1300 mm. More details for 1xN,2XN,NXN MM FBT Coupler can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    1xN,2XN,NXN MM FBT Coupler
  • Manufacturer
    Shanghai Fsphotonics Technology

General Parameters

  • Coupler Type
    Fused Biconical Tap Coupler
  • Configuration
    1 x 2, 4 x 4, 8 x 8, 16 x 16, 2 x 2, 1 x 4, 1 x 8, 1 x 16
  • Excess Loss
    0.7 to 3 dB
  • Insertion Loss
    4.2 to 16 dB
  • Center Wavelength
    850 nm, 1300 mm
  • Wavelength
    850 nm, 1300 mm
  • Uniformity
    0.5 to 2 dB

Applications

  • Application
    Optical Fiber Communication Systems, Optical Fiber CATV, Optical Amplifiers, Optical Access, Networks/LAN, Monitoring Systems, Optical Fiber Sensor
  • Application Industry
    Test & Measurement, Optical Communication

Fiber Parameters

  • Fiber Coupled
    Corning 50/125 µm, 62.5/125 µm
  • Fiber diameter
    50/125 µm, 62.5/125 µm
  • Fiber Modes
    Multi Mode

Temperature

  • Operating Temperature
    -40 to 75 Degree C
  • Storage Temperature
    -40 to 85 Degree C
