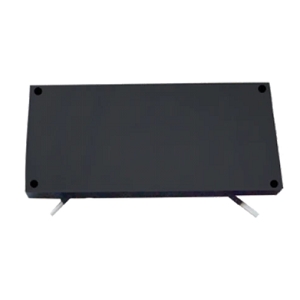

C9502-S

Fiber Optic Coupler by WDMQuest
173 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to WDMQuest.

The C9502-S from WDMQuest is a Fiber Optic Coupler with Excess Loss 0.5 dB, Insertion Loss 1.6 to 12.8 dB, Wavelength 1310 nm, 1550 nm. More details for C9502-S can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    C9502-S
  • Manufacturer
    WDMQuest
  • Description
    1x5 1310 nm & 1550 nm Tap Coupler Module, Tap Ratio: 77/23, Coupler Ratio: 50/50

General Parameters

  • Configuration
    1 x 5
  • Coupling Ratio
    50:50
  • Excess Loss
    0.5 dB
  • Insertion Loss
    1.6 to 12.8 dB
  • Wavelength
    1310 nm, 1550 nm
  • Loss Variation at Output Ports
    0.8 dB
  • Dimension
    111 x 51 x 13 mm

Applications

  • Application
    Optical Communication, Local Area Network, FTTH & LAN, HFC & Fiber Sensors
  • Application Industry
    Fiber-to-the-Home (FTTH), Optical Communication

Fiber Parameters

  • Fiber Coupled
    SM-28e with 900 µm Loose Tube
  • Fiber Modes
    Single Mode

Temperature

  • Operating Temperature
    -45 to 80 Degree C
