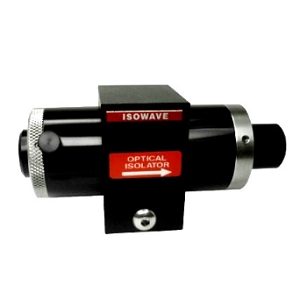

I-106-SD-H

Fiber Optic Isolator by Isowave
158 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Isowave.

The I-106-SD-H from Isowave is a Fiber Optic Isolator with Optical Power 250 W/cm2, Isolation 55 dB, 60 dB, Insertion Loss 1.0 dB, 1.5 dB, Wavelength 1100 to 2100 nm. More details for I-106-SD-H can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    I-106-SD-H
  • Manufacturer
    Isowave

General Parameters

  • Optical Power
    250 W/cm2
  • Type
    Semi-Double Stage Isolator, Tunable Isolator
  • Isolation
    55 dB, 60 dB
  • Insertion Loss
    1.0 dB, 1.5 dB
  • Wavelength
    1100 to 2100 nm
  • Power Handling
    250 W/cm2
  • Clear Aperture
    5 mm
  • Stage
    Semi Double
  • Transmission
    70 to 79%

Physical Properties

  • Diameter
    1.375 Inches, 34.9 mm
  • Length
    5.39 Inches, 137 mm

Applications

  • Application
    Preservation of Laser Signal Integrity, Test & Measurement Equipment, Lasers and Amplifiers, Metrology or Quality Control

Fiber Parameters

  • Fiber Coupled
    Free Space

Technical Documents
