Fiber Optic Isolator by Isowave

Note: Your Quotation Request will be directed to Isowave.

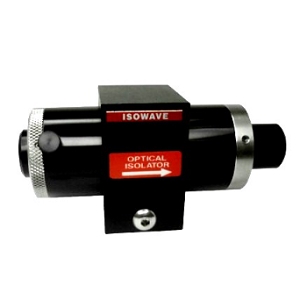

The I-80-3M from Isowave is a Fiber Optic Isolator with Insertion Loss 0.4 to 0.7 dB, Isolation 38/40 dB, Wavelength 700-900 nm. More details for I-80-3M can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
  • Manufacturer
  • Description
    ISOWAVE offers a wide variety of isolators for the 700-900nm wavelength band (1). Features to choose from include 2mm, 3mm, 4mm and 5mm clear apertures, fixed or tunable polarizers, broad band isolation and three power level options*. Single and Semi-Doub

General Parameters

  • Clear Aperture
    3 mm
  • Features
    Superior Performance and Reliability, High Isolation / Low Insertion Loss, Low, Medium and High Power Options, High Power Models with Exit Ports for,Return Signal Monitoring or Beam Injection, User Tunable or Fixed Wavelength,Wide Tuning Range, Broadband
  • Fiber diameter
    1.0/25.4 inch/mm
  • Fiber length
    3.54/90 inch/mm
  • Power Density
    100 W/cm2
  • Tunable
  • Type
    free-space optical isolator
  • Insertion Loss
    0.4 to 0.7 dB
  • Isolation
    38/40 dB
  • Wavelength
    700-900 nm

Technical Documents

Click to view more product details on manufacturer's website
