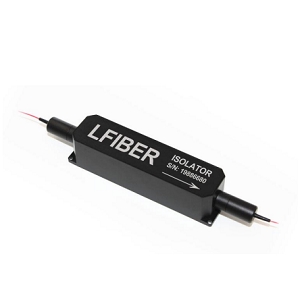

Fiber Optic Isolator by Lfiber Optic
4 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Lfiber Optic.

The S/N: 19886680 from Lfiber Optic is a Fiber Optic Isolator with Optical Power 20 W, Isolation 55 dB, Insertion Loss 0.8 to 1.2 dB, Wavelength 1064 nm, 1030 nm, 980 nm, 915 nm, 850 nm, 808 nm, 780 nm, Polarization Dependent Loss 0.2 dB. More details for S/N: 19886680 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    S/N: 19886680
  • Manufacturer
    Lfiber Optic
  • Description
    High-Power Dual-Stage Isolator 1064nm, 1030nm, 980nm, 915nm, 850nm, 808nm, 780nm

General Parameters

  • Optical Power
    20 W
  • Type
    Polarization Independent Isolator, Dual-Stage Isolator
  • Isolation
    55 dB
  • Insertion Loss
    0.8 to 1.2 dB
  • Accuracy
    ±5 nm
  • Wavelength
    1064 nm, 1030 nm, 980 nm, 915 nm, 850 nm, 808 nm, 780 nm
  • Center Wavelength
    1064 nm, 1030 nm, 980 nm, 915 nm, 850 nm, 808 nm, 780 nm
  • Mode
    Single Mode
  • Peak Isolation
    65 dB
  • Peak Pulse Power
    10 kW
  • Stage
    Dual
  • Tensile Load
    5 N
  • Polarization Dependent Loss
    0.2 dB
  • Return Loss
    45 dB

Environmental Conditions

  • Operating Temperature
    10 to 50 Degree C
  • Storage Temperature
    0 to 60 Degree C

Physical Properties

  • Dimensions
    150 x 28 x 26 mm

Applications

  • Application
    Fiber Laser, Testing Instruments, Mopa Fiber Laser, Polarization Maintaining Fiber Amplifier

Connections & Interface

  • Connectors
    FC/UPC, FC/APC, SC/UPC, SC/APC, LC/UPC, LC/APC

Fiber Parameters

  • Fiber Coupled
    Fiber Coupled
  • Fiber length
    0.5 m, 0.8 m, 1 m
  • Fiber Jacket
    250 µm, 900 µm
  • Fiber Type
    Hi1060, SMF-28e
