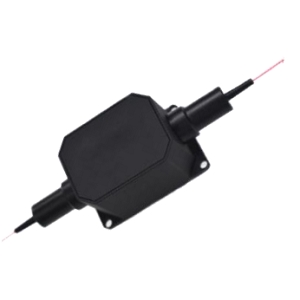

L7100-S

Fiber Optic Isolator by OEQuest
34 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to OEQuest.

The L7100-S from OEQuest is a Fiber Optic Isolator with Optical Power 0.5 W, 1 W, 2 W, Isolation 25 dB, Insertion Loss 1.3 to 1.5 dB, Wavelength 633 nm, Polarization Dependent Loss 0.2 dB. More details for L7100-S can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    L7100-S
  • Manufacturer
    OEQuest
  • Description
    633 nm In-line Isolator, SM

General Parameters

  • Optical Power
    0.5 W, 1 W, 2 W
  • Type
    In-line Isolator
  • Isolation
    25 dB
  • Insertion Loss
    1.3 to 1.5 dB
  • Accuracy
    ±10 nm
  • Wavelength
    633 nm
  • Center Wavelength
    633 nm
  • Power Handling
    0.5 W, 1 W, 2 W
  • Mode
    Single Mode
  • Peak Pulse Power
    5 kW
  • Tensile Load
    5 N
  • Polarization Dependent Loss
    0.2 dB
  • Return Loss
    45 dB

Environmental Conditions

  • Operating Temperature
    10 to 50 Degree C
  • Storage Temperature
    0 to 60 Degree C

Physical Properties

  • Dimensions
    44 x 28 x 26 mm

Applications

  • Application
    Testing Instrument, Raman Fiber Laser, Ultra-fast Fiber Laser

Fiber Parameters

  • Fiber Coupled
    Fiber Coupled
