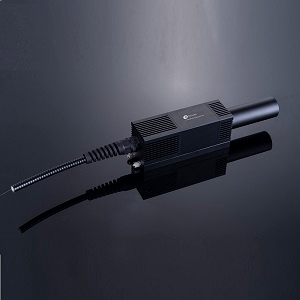

High Power Polarization Insensitive Collimated Beam Output Isolator 1064nm 1000W

Fiber Optic Isolator by Optics Technology

Note: Your Quotation Request will be directed to Optics Technology.

The High Power Polarization Insensitive Collimated Beam Output Isolator 1064nm 1000W from Optics Technology is a Fiber Optic Isolator with Optical Power 1000 W, Isolation 20 to 30 dB, Wavelength 780 nm, Return Loss 50 dB, Operating Temperature 10 to 50 Degree C. More details for High Power Polarization Insensitive Collimated Beam Output Isolator 1064nm 1000W can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    High Power Polarization Insensitive Collimated Beam Output Isolator 1064nm 1000W
  • Manufacturer
    Optics Technology

General Parameters

  • Optical Power
    1000 W
  • Type
    Polarization Insensitive Isolator
  • Isolation
    20 to 30 dB
  • Accuracy
    ±7 nm
  • Wavelength
    780 nm
  • Beam Diameter
    7 mm
  • Center Wavelength
    780 nm
  • Mode
    Single Mode
  • Peak Pulse Power
    100 kW
  • RoHS
    Yes
  • Tensile Load
    100 N
  • Transmission
    20 to 92%
  • Return Loss
    50 dB
  • Note
    Water Pressure: 8 Bar, Flow of Water: 1.5 to 3 L/min

Environmental Conditions

  • Operating Temperature
    10 to 50 Degree C
  • Storage Temperature
    -10 to 70 Degree C

Applications

  • Application
    Industrial pulse laser

Fiber Parameters

  • Fiber Coupled
    Fiber Coupled
  • Fiber length
    10 mm, 1.8 mm, 1.5 m
  • Fiber Jacket
    10 mm
  • Fiber Type
    CJGDF-25/250,NA0.065, Fiber, CJGDF-30/250-062
