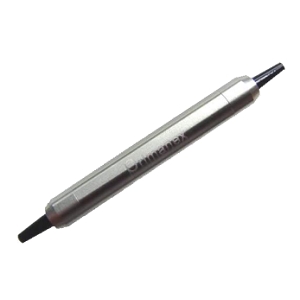

2in1 Polarization Independent Isolator

Fiber Optic Isolator by Puruisi Optoelectronics

Note: Your Quotation Request will be directed to Puruisi Optoelectronics.

The 2in1 Polarization Independent Isolator from Puruisi Optoelectronics is a Fiber Optic Isolator with Optical Power 500 mW, Isolation >18 to 44 dB, Insertion Loss 0.5 to 0.9 dB, Wavelength 1310 nm, 1550 nm, Polarization Dependent Loss 0.15 dB. More details for 2in1 Polarization Independent Isolator can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    2in1 Polarization Independent Isolator
  • Manufacturer
    Puruisi Optoelectronics

General Parameters

  • Optical Power
    500 mW
  • Type
    Polarization Independent Isolator
  • Isolation
    >18 to 44 dB
  • Insertion Loss
    0.5 to 0.9 dB
  • Accuracy
    ±15 nm, ±20 nm
  • Wavelength
    1310 nm, 1550 nm
  • Center Wavelength
    1310 nm, 1550 nm
  • Mode
    Single Mode
  • Polarization Mode Dispersion
    <0.05 to 0.25 ps
  • Stage
    Single, Dual
  • Polarization Dependent Loss
    0.15 dB
  • Return Loss
    >55 dB

Environmental Conditions

  • Operating Temperature
    -5 to 70 Degree C
  • Storage Temperature
    -40 to 85 Degree C

Physical Properties

  • Dimensions
    (Dia) 5.5 x 34 mm

Applications

  • Application
    EDFA, WDM & DWDM System, Fiber-optics Instruments, Transmitters & Fiber Laser

Connections & Interface

  • Connectors
    FC/UPC, FC/APC, SC/UPC, SC/APC, LC/PC, MU/PC

Fiber Parameters

  • Fiber Coupled
    Fiber Coupled
  • Fiber length
    0.5 m, 1 m
  • Fiber Jacket
    250 µm, 900 µm
  • Fiber Type
    Corning SMF-28e
